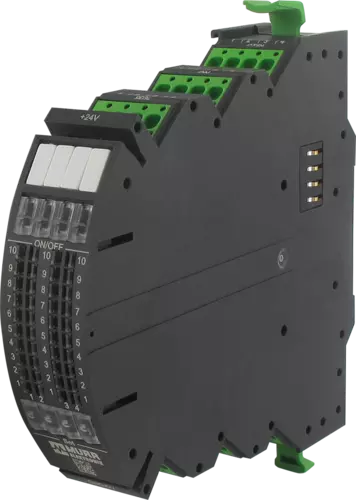

Murr Mico Pro electronic circuit protection, 4 channels, 9000-41094-0101000

Total current max.

40 A

Input voltage DC min.

9 V

Input voltage DC max.

30 V

Nominal input voltage DC

12 V … 24 V

Total current bridge set max.

40 A

ON input voltage control inputs min.

9 V

ON input voltage control inputs max.

30 V

CTRL signal

ON/OFF

CTRL input voltage control inputs high min.

9 V

CTRL input voltage control inputs high max.

30 V

ON pulse length control inputs high min.

120 ms

Number of output channels

4

Triggering current DC full load per channel

10 A

Tolerance trigger current min.

0 %

Tolerance trigger current max.

15 %

Switch-on capacity max.

30 mF

Connection cross-section static min.

0,2 mm²

Connection cross section static max.

2,5 mm²

Connection cross-section dynamic min.

0,2 mm²

Connection cross section dynamic max.

4 mm²

AWG number static min.

14

AWG number static max.

24

AWG number dynamic min.

12

AWG number dynamic max.

24

Connection

Bridge system

Degree of protection (EN IEC 60529)

IP20

Height

130 mm

Width

24 mm

Depth

114 mm

Mounting method

geschnappt

Suitable for mounting type

Mounting rail TH35, (EN 60715)

Operating temperature min.

-25 °C

Operating temperature max.

55 °C

Ambient temperature (storage, transport)

-40 °C … 80 °C
