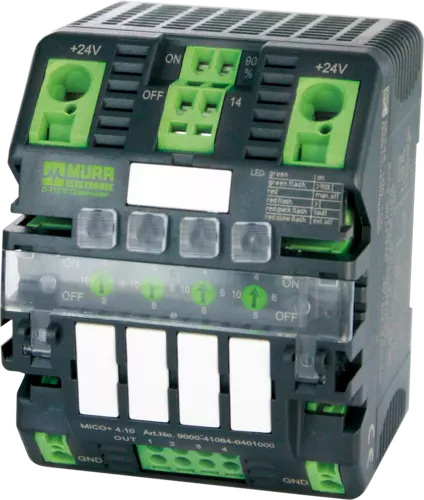

Murr MICO+ 4.6 electronic circuit protection, 4 CHANNELS, 9000-41084-0100600
Art.No.: 9000-41084-0100600
Model designation: MICO+ 4.6
PRICE EXCLUSIVE OF CUSTOMS AND DUTIES
KES25,806
Customize
Share :
Product Details
Electrical data | Input
| Input voltage DC | 24 V |
|---|---|
| Input voltage DC min. | 18 V |
| Input voltage DC max. | 30 V |
| Total current bridge set max. | 40 A |
| ON input voltage control inputs min. | 10 V |
| ON input voltage control inputs max. | 30 V |
| ON pulse length control inputs high min. | 20 ms |
Electrical data | Output
| Switch-on capacity per channel max. | 20 mF |
|---|---|
| Switching current max. | 20 mA |
Installation
| Connection cross-section inputs max. | 16 mm² |
|---|---|
| Connection cross-section outputs max. | 1,5 mm² |
| Connection cross-section control inputs / control outputs max. | 2,5 mm² |
Mechanical data | Mounting data
| Height | 90 mm |
|---|---|
| Width | 70 mm |
| Depth | 80 mm |
| Mounting method | geschnappt |
| Suitable for mounting type | Mounting rail TH35, (EN 60715) |
Environmental characteristics | Climatic
| Operating temperature min. | 0 °C |
|---|---|
| Operating temperature max. | 55 °C |
| Ambient temperature (storage, transport) | -40 °C … 80 °C |
Specifications
General Information
- Manufacturer:Murr
- Category:Electricals & Automation
