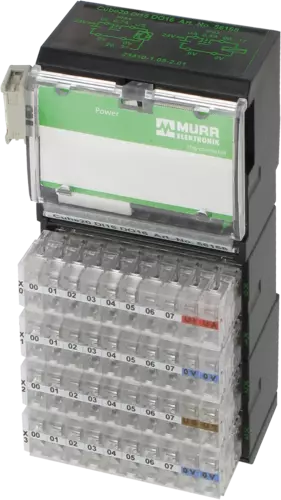

Murr CUBE20 DIGITAL IN-/OUTPUT MODULE, 56168

Norm operating voltage

IEC/EN 61131-2

Operating voltage US DC

24 V

Operating voltage UA DC

24 V

Total current UA max.

12 A

Current consumption max.

25 mA

module supply

via system connection

Current carrying capacity max.

0,7 A

filter time

1 ms

Type input

PNP (EN 61131-2)

Output current per pin max.

0,5 A

Overload resistant

Yes

Short-circuit protected

Yes

Lamp load

10 W

Short circuit diagnosis

Yes

Overload diagnosis

Yes

Diagnostic

Under voltage

Diagnostic via BUS

per module and channel

Diagnostic via LED

per module and channel (only outputs)

LED display

Ethernet connection/data traffic

Connection cross section max.

2,5 mm²

Degree of protection (EN IEC 60529)

IP20

Galvanic separation (operating voltage)

Yes

Galvanic separation input/input

Yes

Galvanic separation output/output

Yes

Height

117 mm

Width

56 mm

Depth

47 mm

Mounting method

geschnappt

Suitable for mounting type

(EN 60715), mounting rail

Operating temperature min.

0 °C

Operating temperature max.

55 °C

Ambient temperature (storage, transport)

-20 °C … 85 °C
