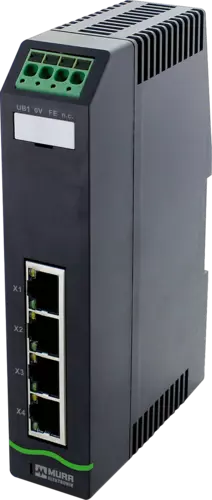

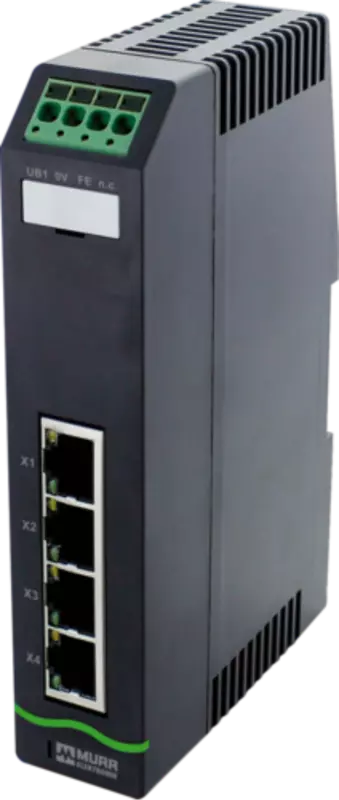

Murr Xelity 4TX Unmanaged Switch 4 Port 100Mbit, 58810
Customize
Share :
Electrical data | Supply
Operating voltage DC min. | 9,5 V |
Operating voltage DC max. | 31,5 V |
Current consumption max. | 35 mA |
Industrial Communication
Data transmission rate max. | 100 Mbit/s |
Industrial communication | Ethernet functionality
VLAN unmanaged (IEEE 802.1Q) | Yes |
Switch type | unmanaged |
duplex | Full duplex |
Auto-negotiation | Yes |
Auto-crossover | Yes |
Diagnostics
Alarm contact | No |
Diagnostic | No voltage |
LED display | Ethernet connection/data traffic |
Device protection | Electrical
Degree of protection (EN IEC 60529) | IP20 |
Invers-polarity protection | Yes |
Over voltage protection | Yes |
Mechanical data | Material data
housing | Plastic |
Color housing | black |
Mechanical data | Mounting data
Height | 140 mm |
Width | 30 mm |
Depth | 85,1 mm |
Mounting method | geschnappt |
Suitable for mounting type | Mounting rail TH35, (EN 60715) |
Environmental characteristics | Climatic
Operating temperature min. | -25 °C |
Operating temperature max. | 60 °C |
Ambient temperature (storage, transport) | -40 °C … 85 °C |
General Information
- Manufacturer:Murr
- Category:Electricals & Automation
