Power and Communication CablesPILZCables and plug-in connectors Pilz PSEN op cable angle M12 4-p. shield. 10m, 630308

Pilz PSEN op cable angle M12 4-p. shield. 10m, 630308

Article Number: 630308

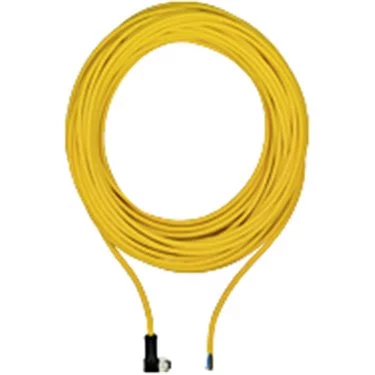

Pilz PSEN op cable angle M12 4-p. shield. 10m, 630308 Connection cable, PUR, yellow RAL1003, shielded, 4-pin, socket angled M12, on open line end, A-coded, cable length: 10m

Download Datasheet (PDF)

PRICE EXCLUSIVE OF CUSTOMS AND DUTIES

KES5,523
Customize
Product Details
General data
ApprovalCE
UKCA
cULus Listed

Technical data
Electrical data
Rated current4
Typ. conductor resistance K157 Ohm/km
Specific contact resistance K1>= 7E+15 Ohm*km
Specific conductor capacity K165.6pF/m
Environmental data
Ambient temperature-25
80
Pollution degree clear.&creep.3
Protection type, housingIP67
Mechanical data
Connector type 14-pin M12 female connector
Shape of connector type 1angled
Coding of M12 connector 1A coded
Contact surfaces material 1Au
Material of socketsCuSn
Cable material K1Cu
Insulation material cable K1PP (9Y)
Cable type K1Li9YC11Y
Length cable10
Material shield surface K1Sn
Colour cable insulation 1Yellow, similar to RAL 1003
Housing colourBlack
Material of cable insulation 1TPU 11YH1
PUR
Trailing capability of cable 1no
Bend radius (when laying) K15 x Ø
Max. outside diameter cable K15.55
5.55
Conductor cross section0.34
0.34
Cable cross section AWG K122
Shielding K1yes
Type of shielding K1Wire mesh
Number of conductors4
Approvals for cable K1UL AWM-Style 20233
UL/CSA
Approvals for connector 1UL94 V-0
Halogen-freeyes
Oil resistanceresistant
Flame resistanceUL VW1
Housing materialPUR
Net weight503
Gross weight513
Specifications
General Information
  • Category
    :
    Electricals & Automation
