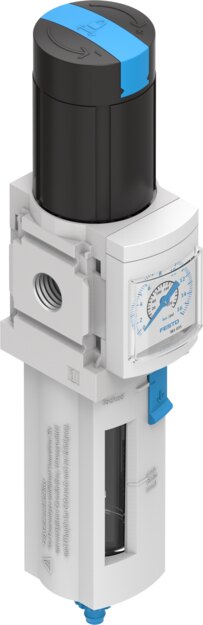

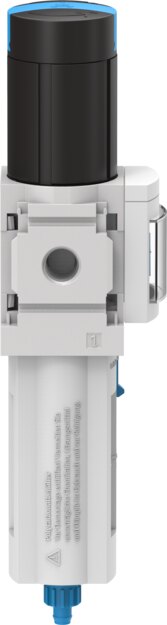

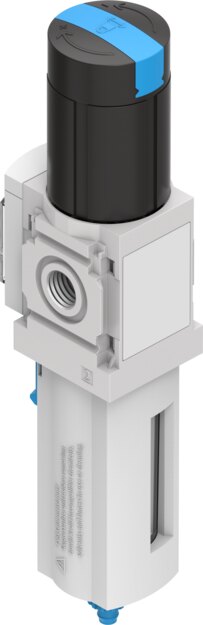

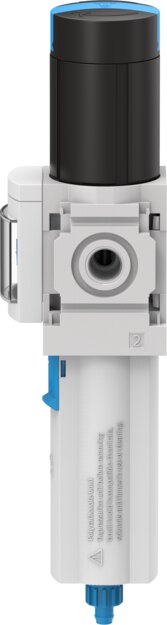

Festo, filt. regulator MS4-LFR-1/4-D7-ERM-AS, 529156

Technical Data Filter regulator MS4-LFR-1/4-D7-ERM-AS

• Size4
• SeriesMS
• Actuator lockRotary knob with detent can be closed with accessories
• Mounting positionVertical +/-5°
• Grade of filtration40 µm
• Condensate drainManual, rotating
• DesignFilter regulator with pressure gauge
• Max. condensate volume19 ml
• Controller functionOutput pressure constant With secondary exhausting With return flow function
• Bowl guardPlastic bowl guard
• Degree of condensate separation>75 %
• Symbol00991589
• Pressure gauge (ANALOG) or Pressure display (DIGITAL)With pressure gauge
• Operating pressure0.08 MPa ... 1.4 MPa
• Operating pressure0.8 bar ... 14 bar
• Pressure regulation range0.5 bar ... 12 bar
• Max. pressure hysteresis0.25 bar
• Standard nominal flow rate (standardised to DIN 1343)1500 l/min
• Operating mediumInert gas
• Corrosion resistance class CRC2 - Moderate corrosion stress
• LABS (PWIS) conformityVDMA24364-B1/B2-L
• Storage temperature-10 °C ... 60 °C
• Suitable for use with foodSee supplementary material information
• Air purity class at outputCompressed air to ISO 8573-1:2010 [7:4:4]
• Media temperature-10 °C ... 60 °C
• Ambient temperature-10 °C ... 60 °C
• Pore size<40 µm
• Product weight275 g
• Type of mountingWith accessories
• Pneumatic connection, port 1G1/4
• Pneumatic connection, port 2G1/4
• Note on materialsRoHS compliant
• Material sub-baseDie-cast aluminium
• Material control panelPA POM
• Material sealsNBR
• Material filterPackaging unit
• Material housingDie-cast aluminium
• Material membraneNBR
• Material bowlMakrolon®
• Material separating platePOM
