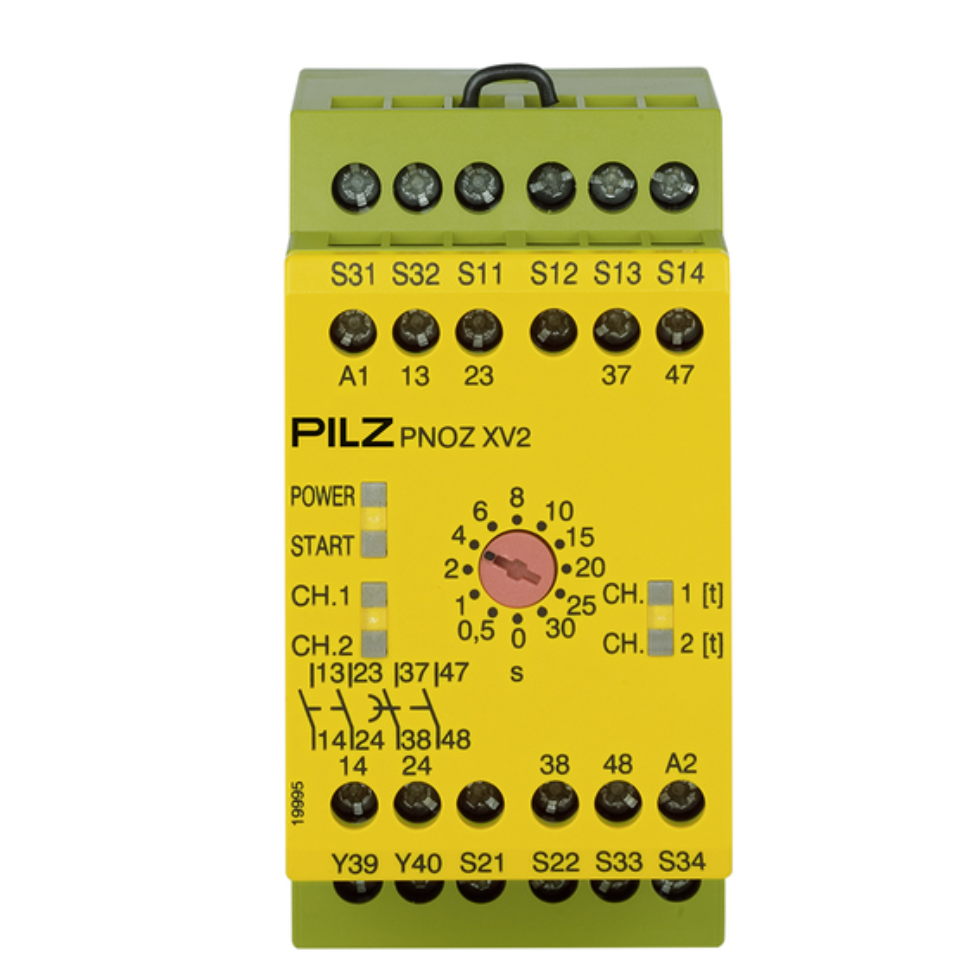

Pilz, PNOZ XV2 30/24VDC 2n/o 2n/o t, 774500

Approval: CCC, CE, UKCA, cULus Listed, EAC (Eurasian), TÜV

Supply voltage (V): 24 V

Type of supply voltage U1: DC

Power consumption DC: 4.5 W

Number of inputs: 2

Number of semicond. outputs: 0

Utilisation cat. AC/DC1 stand.: EN 60947-4-1

Voltage AC1 safety cont.: 240 V

Max. current AC1 safety cont.: 8 A

Voltage DC1 safety cont.: 24 V

Max. current DC1 safety cont.: 8  A

Utilisation cat. AC15/DC13sta.: EN 60947-5-1

Voltage AC15 safety cont.: 230  V

Max. current AC15 safety cont.: 5 A

Voltage DC13 safety cont.: 24  V

Safety contacts: AC at UL: 240 VAC G. P.

Safety contacts: pilot duty: C300, R300

Relay contact material: AgSnO2

Addit. contact details relay: + 0.2 µm Au

Climatic suitability to ...: EN 60068-2-78

Ambient temperature:-10 - 55  °C

Humidity rating: 93 % r. h. at 40 °C

Condensation permitted?: Not permitted

EMC to standard ...: EN 60947-5-1, EN 61000-6-2, EN 61326-3-1

Vibration to standard ...: EN 60068-2-6

Clearance & creepage dist. To: EN 61131-2

Overvoltage category: III / II

Pollution degree clear.&creep.: 2

Protection type, housing: IP20

Selectable times: 6  s, 20  s, 30  s, 4  s, 15  s, 25  s, 0.1  s, 1  s, 2  s, 0.5  s, 10  s, 8  s

Tolerance Tv: -15% / +15% +50 ms

Mounting position:any

Housing material lower section:PC

Housing material front plate:ABS UL 94 V0

Housing material upper part:

Connection terminal:Screw terminal

Terminal style:fixed

Flex. cond. c/s AWG info: 24 - 10 AWG

Height dimension:87 mm

Width dimension:45 mm

Depth dimension:121 mm

Net weight:345 g

Gross weight:355 g
