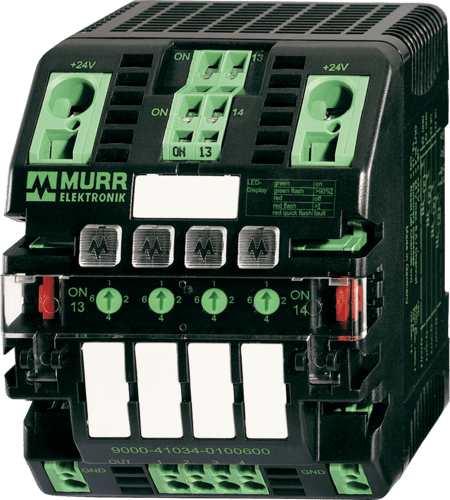

Murr MICO electronic circuit protection, 4 CHANNELS, 9000-41034-0100400

Input voltage DC

24 V

Input voltage DC min.

18 V

Input voltage DC max.

30 V

Total current bridge set max.

40 A

ON input voltage control inputs min.

10 V

ON input voltage control inputs max.

30 V

ON pulse length control inputs high min.

20 ms

Switch-on capacity per channel max.

20 mF

Switching voltage AC max.

30 V

Switching voltage DC max.

30 V

Switching current max.

100 mA

Connection cross-section inputs max.

16 mm²

Connection cross-section outputs max.

4 mm²

Connection cross-section control inputs / control outputs max.

2,5 mm²

Height

90 mm

Width

70 mm

Depth

80 mm

Mounting method

geschnappt

Suitable for mounting type

Mounting rail TH35, (EN 60715)

Operating temperature min.

0 °C

Operating temperature max.

55 °C

Ambient temperature (storage, transport)

-40 °C … 80 °C
