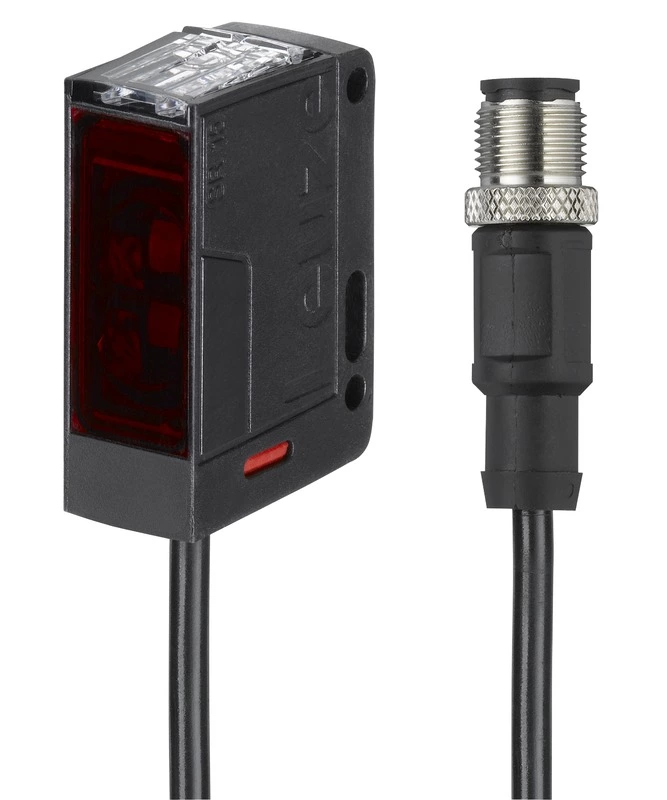

Leuze, PRK15PP.D1/PX-200-M12, 50155524, Polarized retro-reflective photoelectric sensor
Article Number: 50155524
Polarized retro-reflective photoelectric sensor
PRICE EXCLUSIVE OF CUSTOMS AND DUTIES
Non-returnable
KES29,102.40
Customize
Share :
Product Details
Series: 15
Operating principle: Reflection principle
Application: Detection of stretch-wrapped objects
Operating range: 0.08 ... 7.5 m (guaranteed operating range), With reflector TK(S) 100x100
Operating range limit: 0.06 ... 9 m (typical operating range), With reflector TK(S) 100x100
Light source: Power PinPoint® LED, Red
Wavelength: 660 nm
Transmitted-signal shape: Pulsed
LED group: Exempt group (in acc. with EN 62471)
Light spot size [at sensor distance]: 10 mm [400 mm]
Type of light spot geometry: Round
Protective circuit: Polarity reversal protection
Short circuit protected:
Supply voltage UB: 10 ... 30 V, DC, Incl. residual ripple
Residual ripple: 0 ... 15 %, From UB
Open-circuit current: 0 ... 20 mA
Number of digital switching outputs: 1 Piece(s)
Type: Digital switching output
Switching element: Transistor, PNP
Switching principle: Dark switching
Switching frequency: 500 Hz
Response time: 1 ms
Readiness delay: 300 ms
Number of connections: 1 Piece(s)
Function: Signal OUT
Voltage supply:
Type of connection: Cable with connector
Cable length: 200 mm
Sheathing material: PUR
Cable color: Black
Wire cross section: 0.14 mm²
Thread size: M12
Type: Male
Material: Plastic
No. of pins: 4 -pin
Encoding: A-coded
Dimension (W x H x L): 15 mm x 42.7 mm x 30 mm
Housing material: Plastic
Plastic housing: ABS
Lens cover material: Plastic
Net weight: 22 g
Housing color: Black
Type of fastening: Through-hole mounting
Via optional mounting device:
Recommended tightening torque for M3 fastening: 0.9 N·m
Recommended tightening torque for M4 fastening: 1.4 N·m
Type of display: LED
Number of LEDs: 2 Piece(s)
Operational controls: 270° potentiometer
Function of the operational control: Sensitivity adjustment
Ambient temperature, operation: -40 ... 60 °C
Ambient temperature, storage: -40 ... 70 °C
Degree of protection: IP 67
Protection class: III
Approvals: c UL US
Standards applied: IEC 60947-5-2
