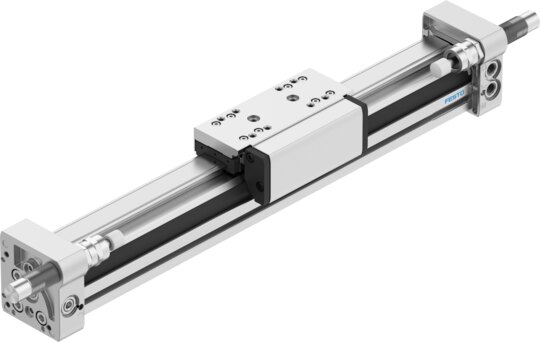

Festo, Linear drive DGC-25, 532447

Technical Data Linear drive DGC-25- -

• Stroke1 mm ... 8500 mm
• Piston diameter25 mm
• CushioningElastic cushioning rings/plates at both ends Pneumatic cushioning, adjustable at both ends Shock absorber, hard characteristic curve Shock absorber, soft characteristic curve
• Mounting positionAny
• GuidePlain-bearing guide Basic Guide Recirculating ball bearing guide
• Position detectionVia proximity switch
• VariantsAdditional slide, standard, on left Additional slide, standard, on right
• Operating pressure0.2 MPa ... 0.8 MPa
• Operating pressure2 bar ... 8 bar
• Mode of operationDouble-acting
• CE mark (see declaration of conformity)To EU Explosion Protection Directive (ATEX)
• UKCA marking (see declaration of conformity)To UK EX instructions
• Explosion protection certification outside the EUEPL Dc (GB) EPL Gb (GB)
• Explosion protectionZone 1 (ATEX) Zone 1 (UKEX) Zone 2 (ATEX) Zone 22 (ATEX) Zone 22 (UKEX)
• ATEX category gasII 2G
• ATEX category dustII 3D
• Explosion ignition protection type for gasEx h IIC T4 Gb X
• Explosion ignition protection type for dustEx h IIIC T120°C Dc X
• Explosion ambient temperature-10°C <= Ta <= +60°C
• Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-]
• Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
• Corrosion resistance class CRC0 - No corrosion stress 1 - Low corrosion stress 2 - Moderate corrosion stress
• LABS (PWIS) conformityVDMA24364-B1/B2-L
• Cleanroom suitability, measured according to ISO 14644-14Class 6 according to ISO 14644-1
• Suitable for use with foodSee supplementary material information
• Ambient temperature-10 °C ... 60 °C
• Cushioning length15.5 mm
• Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke295 N
• Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke295 N
• alternative connectionsSee product drawing
• Type of mountingWith accessories
• Pneumatic connection, clamping unitM5
• Note on materialsRoHS compliant
• Material coverWrought aluminium alloy
• Material sealsNBR TPE-U(PU)
