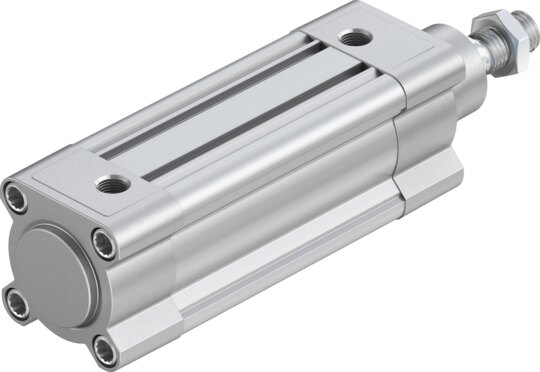

Festo, stand.based cyl DSBC-50-80-PPSA-N3, 1376306

Technical Data ISO cylinder DSBC-50-80-PPSA-N3

• Stroke80 mm
• Piston diameter50 mm
• Piston rod threadM16x1.5
• CushioningSelf-adjusting pneumatic end-position cushioning
• Mounting positionAny
• Conforms to standardISO 15552
• Piston-rod endMale thread
• DesignPiston Piston rod Profile barrel
• Position detectionVia proximity switch
• Symbol00992970
• VariantsPiston rod at one end
• Operating pressure0.04 MPa ... 1.2 MPa
• Operating pressure0.4 bar ... 12 bar
• Mode of operationDouble-acting
• Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
• Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
• Corrosion resistance class CRC2 - Moderate corrosion stress
• LABS (PWIS) conformityVDMA24364-B1/B2-L
• Cleanroom suitability, measured according to ISO 14644-14Class 5 according to ISO 14644-1
• Ambient temperature-20 °C ... 80 °C
• Impact energy in end positions1 J
• Cushioning length22 mm
• Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke990 N
• Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke1178 N
• Moving mass565 g
• Moving mass for 0 mm stroke365 g
• Additional moving mass per 10 mm stroke25 g
• Product weight1638 g
• Basic weight for 0 mm stroke1190 g
• Additional weight per 10 mm stroke56 g
• Type of mountingWith female thread With accessories
• Pneumatic connectionG1/4
• Note on materialsRoHS compliant
• Material coverCoated die-cast aluminium
• Material piston sealTPE-U(PU)
• Material pistonWrought aluminium alloy
• Material piston rodHigh-alloy steel
• Material piston rod wiperTPE-U(PU)
• Buffer seal materialTPE-U(PU)
• Material of cushioning bossPOM
• Material cylinder barrelSmooth-anodised wrought aluminium alloy
• Material nutGalvanised steel
• Material bearingPOM
• Material collar screwsGalvanised steel
