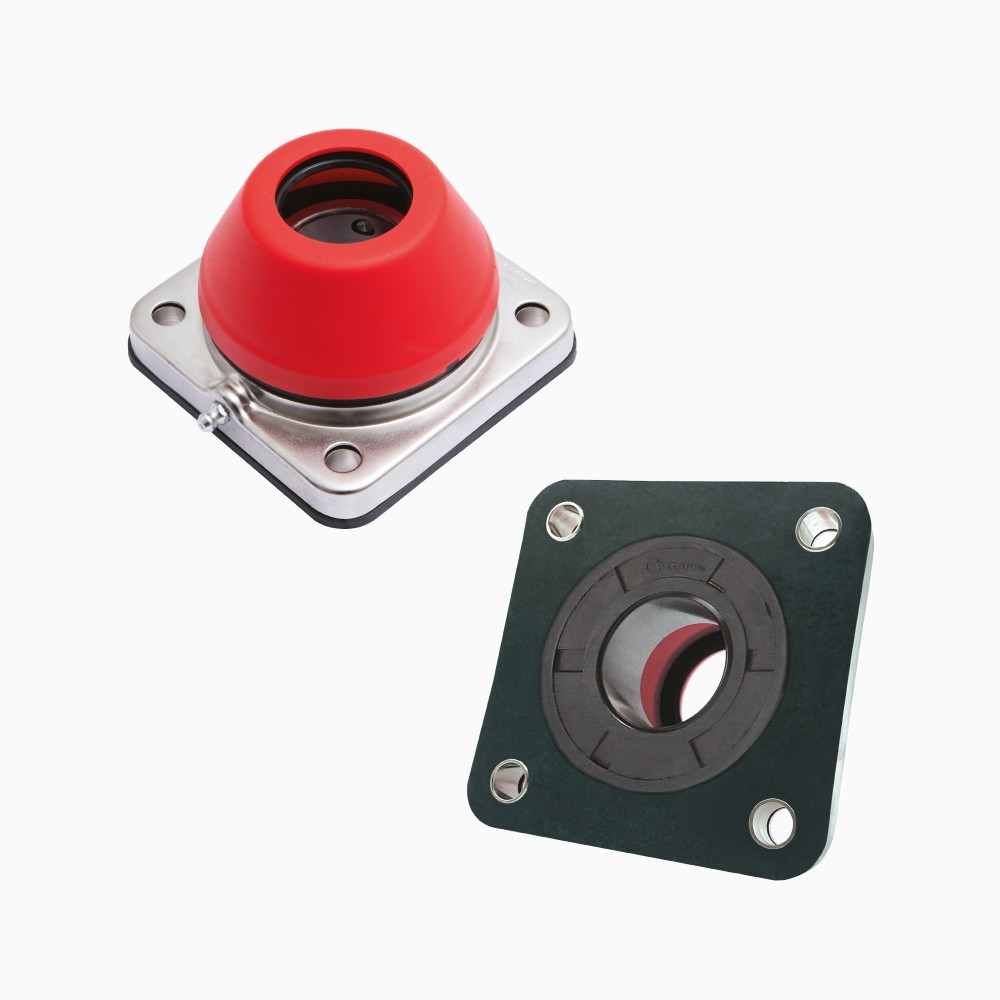

Movex, 4-HOLES SOLID BEARING SUPPORT WATERTIGHT CS 208 d 40 - OPEN - I83 mm 110X110 INS.INOX, P85004SS

Series: CS

Type: Watertight (cap)

Fixation: 4-holes

Material: Plastic

Version: Solid

Fixing method: Grub screw

Unit of measure: Ea

Box: -

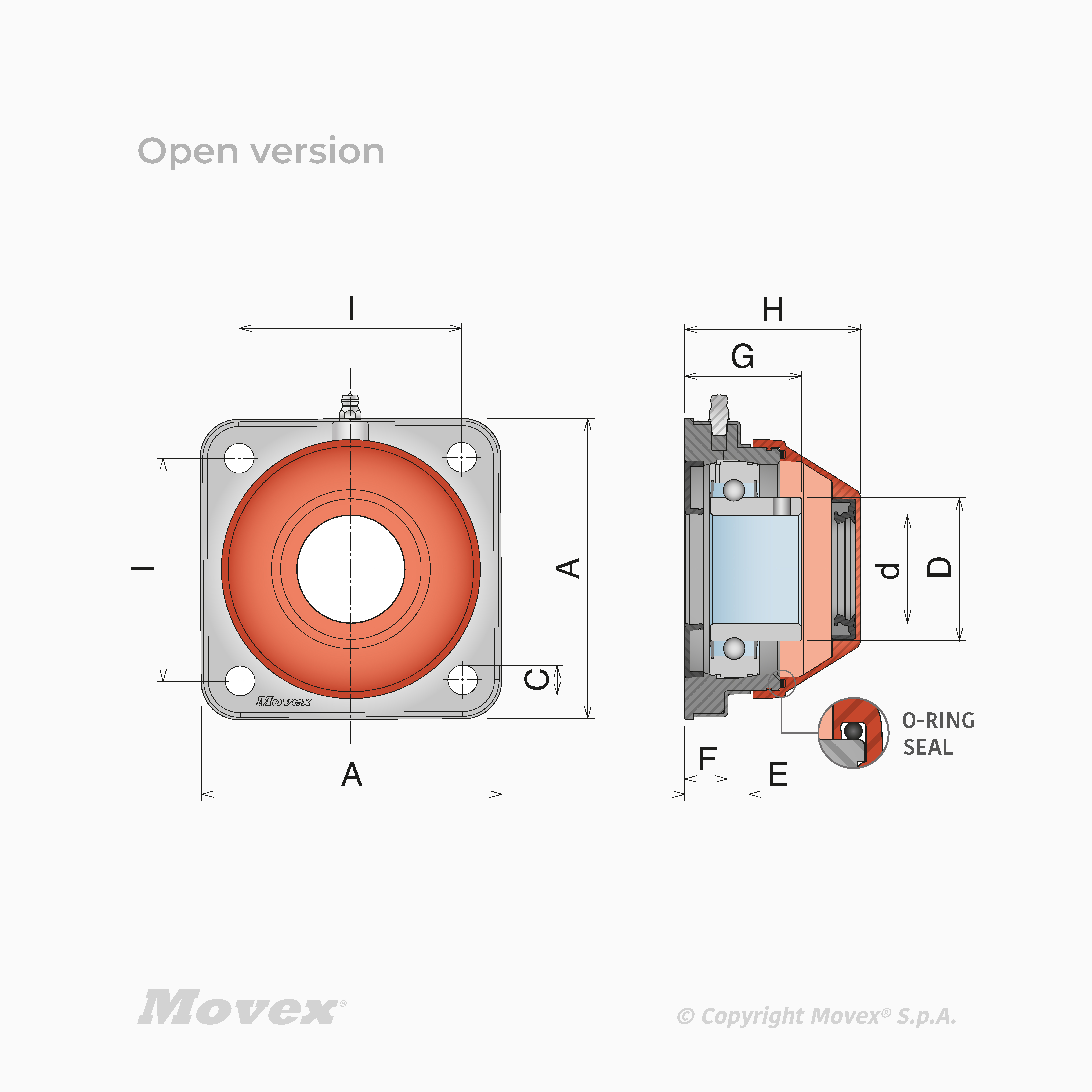

A: 111 mm

Operating Temperature °C: 5÷100 °C

D: 53 mm

E: 18.5 mm

C: 11 mm

F: 16.5 mm

G: 43 mm

H: 69 mm

Bearing material: Stainless steel

Watertight (Safety cap): Yes, open cap

Shaft diameter: 40 mm

I (holes distance): 82.5 mm

Shaft adjustment: 2.5°

Housing: Housing in reinforced polypropylene & cover in SS

Bearing: Chrome steel or stainless steel ball bearing (pre-lubricated)

Spacers: Nickel-plated brass mounting hole spacers

Grease nipple: Nickel plated steel or SS grease nipple M6 conical (Plug for “Long life”)

Cap: Polypropylene open cap with O-ring seal & NBR top seal

Seal: NBR bottom seal
