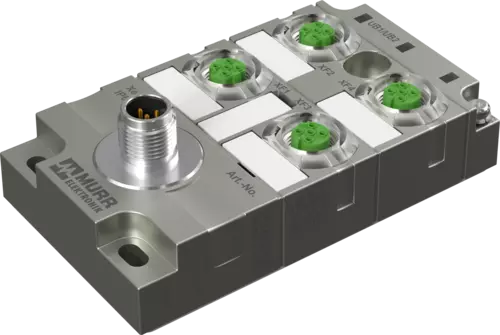

Murr Xelity 4 Port Switch IP67 100 Mbit/s, 58930

Operating voltage type

DC

Operating voltage DC

12 V / 24 V 36 V

Operating voltage DC min.

9 V

Operating voltage DC max.

45 V

Power failure bridging time

10 ms

Idle current min.

10 mA

Current consumption max.

80 mA

Power consumption max.

1 W

Number of HW interfaces (Industrial Ethernet)

4

Supported protocol

Profinet, Ethernet/IP

MDI

Yes

Broadcast storm protection

Yes

LLDP frames

blocked

RSTP frames

forwarding

QoS unmanaged (IEEE 802.1p)

Round robin, 2 queues

VLAN unmanaged (IEEE 802.1Q)

Tag forwarding

MAC address table max. (number of addresses)

1.000

Green Ethernet

No

Transmission type (Port 1)

100 BASE-T(X), 10 BASE-T

Transmission type (Port 2)

100 BASE-T(X), 10 BASE-T

Transmission type (Port 3)

100 BASE-T(X), 10 BASE-T

Transmission type (Port 4)

100 BASE-T(X), 10 BASE-T

Switch type

unmanaged

Switching procedure

Store & forward

duplex

Full or half duplex

Auto-negotiation

Yes

Auto-crossover

Yes

Auto-polarity

Yes

Flow control (IEEE 802.3x)

Pause-frames, Back pressure

Energy-efficient Ethernet (IEEE 802.3az)

No

Package buffer

0,448 Mbit

Topology

line, star

Line topology cascading max.

infinite

Conformance Class

A

LED display

Ethernet connection/data traffic, Power

Connection cross section max.

2,5 mm²

Number ports

4

Installation height max. ASL

3.000 m

Degree of protection (EN IEC 60529)

IP67, IP65

Protection class (EN IEC 61140)

III

Additional condition protection class

Power supply must comply with SELV or PELV

Invers-polarity protection

Yes

Pollution Degree

3

Over voltage protection

Yes

Overload protection device supply

No

Circuit Breakers

1 A

Protective circuitry input

Suppressor diode, Yes

Galvanic separation (operating voltage)

No

Free fall (EN 61131-2)

0,3 m

Shock resistance (EN IEC 60068-2-27)

30 g 11 ms 6 x (X-, Y-, Z-axis)

Vibration resistance (EN IEC 60068-2-6)

3,5 mm (5 ... 9 Hz), 10 g (60 ... 150 Hz), 10 cycles, 3 axes

Flame resistance

flame retardant

housing

Zinc die-casting

Color housing

gray

Net weight

326 g

Height

95 mm

Width

55 mm

Depth

32 mm

mounting position

random

Mounting method

screwed

Suitable for mounting type

Wall mounting, horizontal, vertical

Interference emission

EN IEC 61000-6-4, EN IEC 61000-6-3, EN IEC 61000-6-8

Immunity to interference

EN IEC 61000-6-2, IEC/EN 61131-2

Ambient temperature (operation)

-40 °C … 80 °C

Ambient temperature (storage, transport)

-40 °C … 85 °C

Relative humidity (operation)

10 % … 95 %

Additional condition relative humidity

without dew formation, without condensation, without ice formation

Assembly location

Interior

MTTF (EN/IEC 61709, EN ISO 13849-1, SN 29500)

256 a @ 40 °C

REACH ((EC) 1907/2006)

compliant

RoHS (2011/65/EU, (EU) 2015/863)

compliant

RoHS-Exemption (2011/65/EU)

6(c), 7(a), 7(c)-I

China RoHS (SJ/T 11364, GB/T 26572)

EFUP-25

California Proposition 65

Nickel (Ni) CAS 7440-02-0

WEEE (2012/19/EU)

Category 6

Halogen-free-Material

not halogen-free

Pb-free-Material

2011/65/EU, (EU) 2015/863

CE

2014/30/EU, 2011/65/EU

UKCA

The Electromagnetic Compatibility Regulations 2016, The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012

UL Listed (US, CA)

E201820
