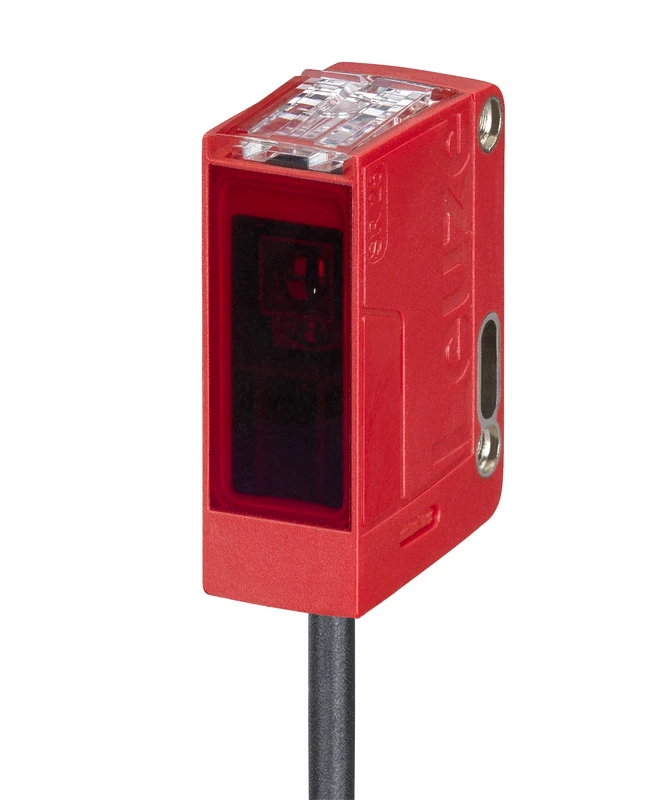

Leuze, ODT25CL1-3M.3/L6, 50154569, Diffuse sensor with background suppression
Article Number: 50154569
Distance diffuse sensor with background suppression
Download Datasheet (PDF)
PRICE EXCLUSIVE OF CUSTOMS AND DUTIES
Non-returnable
KES63,619.20
Customize
Share :
Product Details
Series: 25C
Operating principle: Distance diffuse sensor with background suppression
Special version: 2 independent switching outputs
Measurement value output:
Black-white error: ±20 mm, see diagram
Operating range: 0.07 ... 3 m (guaranteed operating range)
Adjustment range: 50 ... 3,500 mm
Beam path: Focused
Light source: Laser, Red
Wavelength: 680 nm
Laser class: 1, IEC 60825-1:2014 / EN 60825-1:2014+A11:2021
Transmitted-signal shape: Pulsed
Type of light spot geometry: Round
Shift angle: typ. ± 2.5°
Measurement range: 50 ... 3,500 mm
Resolution: 1.0 mm
Accuracy: -20 ... 20 mm
Reproducibility (1 sigma): 0 ... 13 mm
Measurement value output: via IO-Link
Optical distance measurement principle: Time of flight
Protective circuit: Polarity reversal protection
Short circuit protected:
Transient protection:
Supply voltage UB: 10 ... 30 V, DC, Incl. residual ripple
Residual ripple: 0 ... 15 %, From UB
Open-circuit current: 0 ... 35 mA
Number of digital switching outputs: 2 Piece(s)
Type: Digital switching output
Switching current, max.: 90 mA
Switching element: Transistor, Push-pull
Switching principle: IO-Link / light switching (PNP)/dark switching (NPN)
Switching element: Transistor, Push-pull
Switching principle: Light switching (PNP)/dark switching (NPN)
Switching frequency: 7 ... 15 Hz, depending on diffuse reflectance
Response time: 33 ... 70 ms, depending on diffuse reflectance
Readiness delay: 300 ms
Type: IO-Link
COM mode: COM3
Profile: Smart sensor profile
Min. cycle time: COM3 = 0.6 ms
Frame type: 2.V
Specification: V1.1
Device ID: 2221
SIO-mode support: Yes
Number of connections: 1 Piece(s)
Function: Signal IN
Signal OUT:
Voltage supply:
Type of connection: Cable
Cable length: 2,000 mm
Sheathing material: PUR
Cable color: Black
Number of conductors: 4 -wire
Wire cross section: 0.2 mm²
Dimension (W x H x L): 15 mm x 42.7 mm x 30 mm
Housing material: Plastic
Plastic housing: PC-ABS
Lens cover material: Plastic / PMMA
Net weight: 30 g
Housing color: Red
Type of fastening: Through-hole mounting
Via optional mounting device:
Recommended tightening torque for M3 fastening: 0.9 N·m
Compatibility of materials: ECOLAB
Type of display: LED
Number of LEDs: 2 Piece(s)
Operational controls: Teach button
Function of the operational control: Light/dark switching
Range adjustment:
Ambient temperature, operation: -30 ... 50 °C
Ambient temperature, storage: -40 ... 70 °C
Degree of protection: IP 67
IP 69K:
Protection class: III
Approvals: c UL US
Standards applied: IEC 60947-5-2
