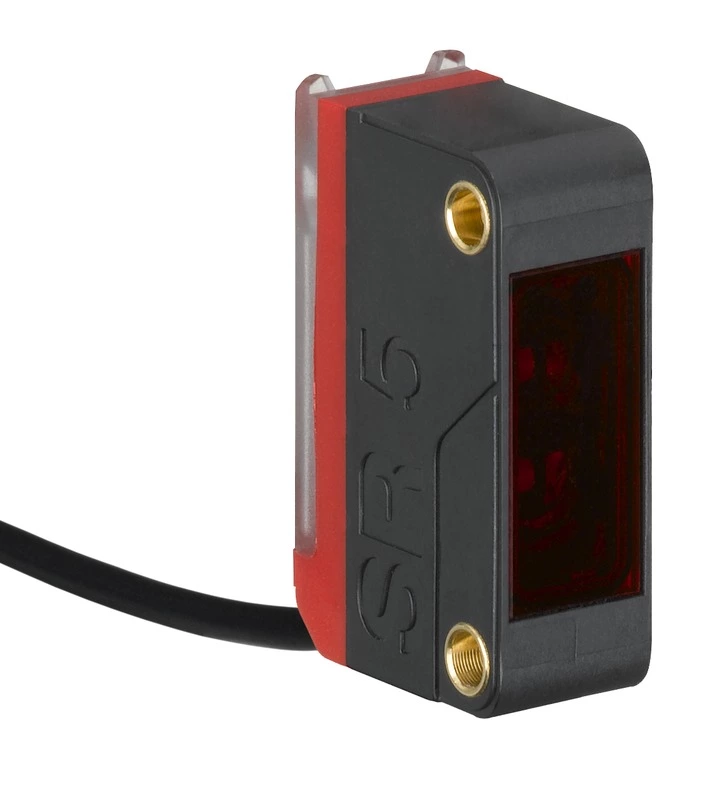

Leuze, LS5BIX, 50155510, Throughbeam photoelectric sensor transmitter
Article Number: 50155510
Polarized retro-reflective photoelectric sensor set
PRICE EXCLUSIVE OF CUSTOMS AND DUTIES
Non-returnable
KES11,731.20
Customize
Share :
Product Details
Series: 5B
Operating principle: Throughbeam principle
Device type: Transmitter
Operating range: 0 ... 15 m (guaranteed operating range)
Operating range limit: 0 ... 20 m (typical operating range)
Light source: LED, Infrared
Wavelength: 850 nm
Transmitted-signal shape: Pulsed
LED group: Exempt group (in acc. with EN 62471)
Protective circuit: Polarity reversal protection
Short circuit protected:
Supply voltage UB: 10 ... 30 V, DC, Incl. residual ripple
Residual ripple: 0 ... 15 %, From UB
Open-circuit current: 0 ... 20 mA
Readiness delay: 300 ms
Number of connections: 1 Piece(s)
Function: Voltage supply
Type of connection: Cable
Cable length: 2,000 mm
Sheathing material: PVC
Cable color: Black
Number of conductors: 3 -wire
Wire cross section: 0.14 mm²
Dimension (W x H x L): 11 mm x 32.4 mm x 20 mm
Housing material: Plastic
Plastic housing: PC-ABS
Lens cover material: Plastic
Net weight: 44 g
Housing color: Black
Red:
Type of fastening: Two M3 threaded sleeves
Via optional mounting device:
Recommended tightening torque for M3 fastening: 0.9 N·m
Compatibility of materials: ECOLAB
Type of display: LED
Number of LEDs: 2 Piece(s)
Ambient temperature, operation: -40 ... 60 °C
Ambient temperature, storage: -40 ... 70 °C
Degree of protection: IP 67
Protection class: III
Approvals: c UL US
Standards applied: IEC 60947-5-2
