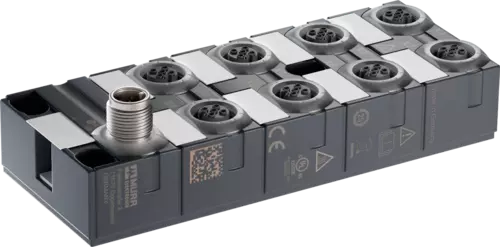

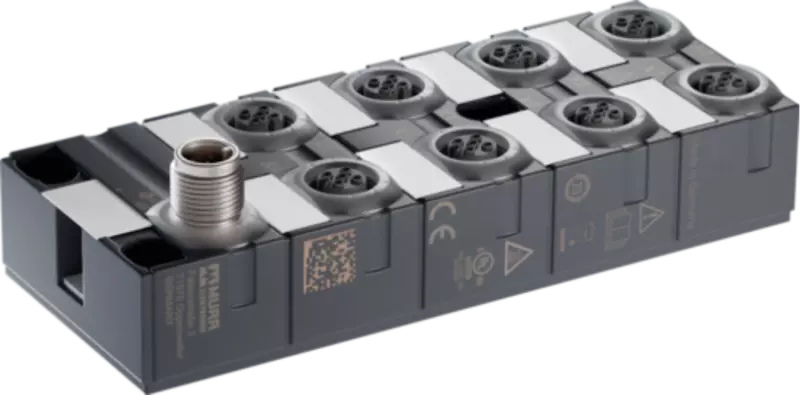

Murr MVP12-P6 DIO16 8xM12A IOLA12 B0, 59719
Customize
Share :
Electrical data | Supply
Operating voltage DC | 24 V |
Operating voltage US DC | 24 V |
Total current US max. | 4 A |
Current consumption max. | 40 mA |
Electrical data | Input
Sensor current per input max. | 0,5 A |
filter time | 1 ms |
Type input | Type 3, Type 1 |
Electrical data | Output
Output current per pin max. | 0,5 A |
Industrial communication | IO-Link
type | Device |
Port Class | A |
revision ID | V1.1.2 |
transmission rate | COM3 (230.4 kbit/s) |
process data length input | 2 bytes |
process data length output | 2 bytes |
cycle time min. | 1 ms |
revision compatibility | V1.1.3 |
Diagnostics
Actuator warning | Yes |
Short circuit diagnosis | Yes |
Overload diagnosis | Yes |
Diagnostic via LED | per module and channel |
Status indication LED | green |
LED display | Ethernet connection/data traffic |
IO-Link events | Undervoltage supply, No voltage |
Device protection | Electrical
Installation height max. ASL | 3.000 m |
Degree of protection (EN IEC 60529) | IP68 |
Overload resistant | Yes |
Short-circuit protected | Yes |
Mechanical data | Mounting data
Height | 126 mm |
Width | 50 mm |
Depth | 34,5 mm |
Suitable for mounting type | 2-hole screw mounting |
Environmental characteristics | Climatic
Operating temperature min. | -25 °C |
Operating temperature max. | 70 °C |
Ambient temperature (storage, transport) | -40 °C … 85 °C |
Conformity
Product standard | IEC/EN 61131-2 |
