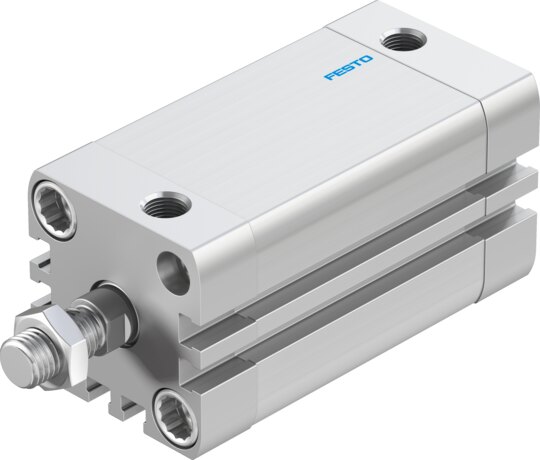

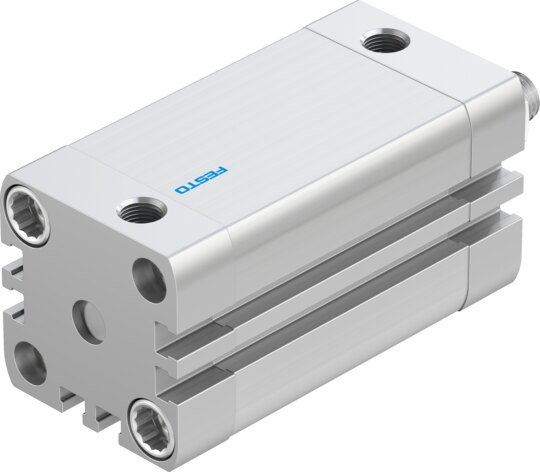

Festo, Compact cyl. ADN-32-50-A-P-A, 536275

Technical Data Compact cylinder ADN-32-50-A-P-A

• Stroke50 mm
• Piston diameter32 mm
• Piston rod threadM10x1.25
• CushioningElastic cushioning rings/plates at both ends
• Mounting positionAny
• Conforms to standardISO 21287
• Piston-rod endMale thread
• Position detectionVia proximity switch
• Symbol00991217
• VariantsPiston rod at one end
• Operating pressure0.06 MPa ... 1 MPa
• Operating pressure0.6 bar ... 10 bar
• Mode of operationDouble-acting
• Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
• Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
• Corrosion resistance class CRC2 - Moderate corrosion stress
• LABS (PWIS) conformityVDMA24364-B1/B2-L
• Cleanroom suitability, measured according to ISO 14644-14Class 5 according to ISO 14644-1
• Ambient temperature-20 °C ... 80 °C
• Impact energy in end positions0.4 J
• Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke415 N
• Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke483 N
• Moving mass122 g
• Product weight412 g
• Type of mountingWith through-hole With female thread With accessories
• Pneumatic connectionG1/8
• Note on materialsRoHS compliant
• Material collar screwsSteel
• Material coverAnodised wrought aluminium alloy
• Material sealsTPE-U(PUR)
• Material piston rodHigh-alloy steel
• Material cylinder barrelSmooth-anodised wrought aluminium alloy
