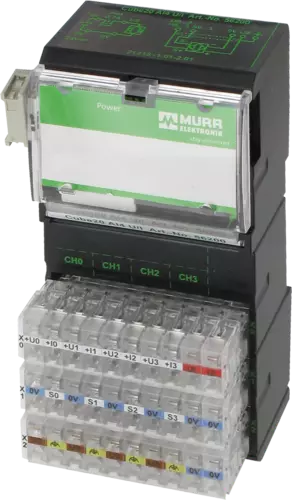

Murr CUBE20 AI4 U/I, 56200

Total current US max.

4 A

Total current UA max.

4 A

Idle current external max.

60 mA

Current consumption max.

25 mA

module supply

via system connection

Input current min.

0 mA

Input current max.

20 mA

Current input mode 2 min.

4 mA

Current input mode 2 max.

20 mA

Resistance input min.

1.000 kΩ

Working resistance max.

300 Ω

Conversion time analog input per channel max.

2 ms

Short circuit diagnosis

Yes

Overload diagnosis

Yes

Diagnostic

Under voltage

Diagnostic via BUS

per module and channel

Diagnostic via LED

per module

LED display

Ethernet connection/data traffic

Connection cross section max.

2,5 mm²

Degree of protection (EN IEC 60529)

IP20

Height

117 mm

Width

56 mm

Depth

47 mm

Mounting method

geschnappt

Suitable for mounting type

(EN 60715), mounting rail

Operating temperature min.

0 °C

Operating temperature max.

55 °C

Ambient temperature (storage, transport)

-40 °C … 85 °C

Product standard

IEC/EN 61131-2
