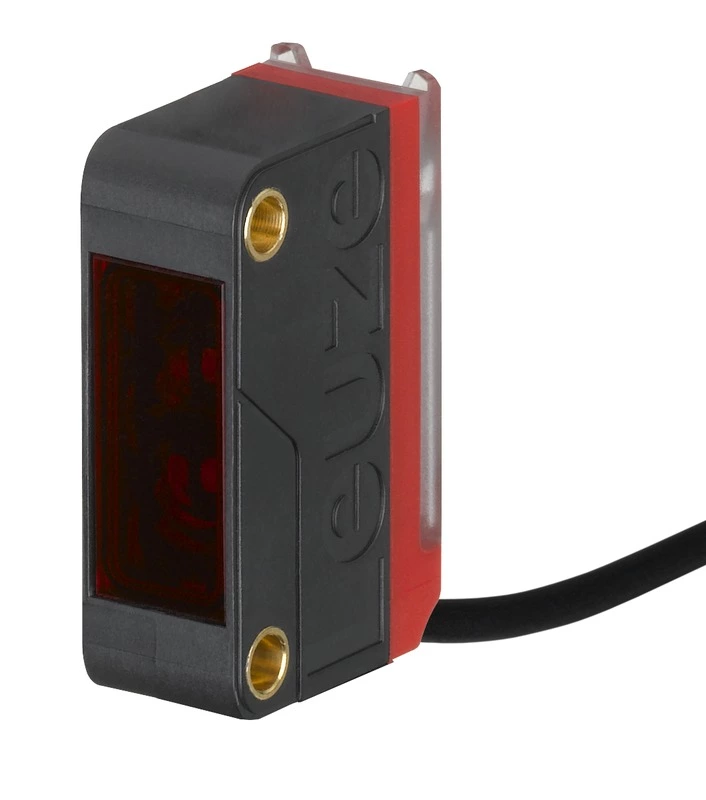

Leuze, LE5B/P, 50145229, Throughbeam photoelectric sensor transmitter
Article Number: 50145229
Throughbeam photoelectric sensor receiver
PRICE EXCLUSIVE OF CUSTOMS AND DUTIES
Non-returnable
KES12,633.60
Customize
Share :
Product Details
Series: 5B
Operating principle: Throughbeam principle
Device type: Receiver
Operating range: see transmitter
Protective circuit: Polarity reversal protection
Short circuit protected:
Supply voltage UB: 10 ... 30 V, DC, Incl. residual ripple
Residual ripple: 0 ... 15 %, From UB
Open-circuit current: 0 ... 20 mA
Number of digital switching outputs: 1 Piece(s)
Type: Digital switching output
Switching element: Transistor, PNP
Switching principle: Dark switching
(light switching by reversing polarity of UB):
Switching frequency: 900 Hz
Response time: 0.56 ms
Readiness delay: 300 ms
Number of connections: 1 Piece(s)
Function: Signal OUT
Voltage supply:
Type of connection: Cable
Cable length: 2,000 mm
Sheathing material: PVC
Cable color: Black
Number of conductors: 3 -wire
Wire cross section: 0.14 mm²
Dimension (W x H x L): 11 mm x 32.4 mm x 20 mm
Housing material: Plastic
Plastic housing: PC-ABS
Lens cover material: Plastic
Net weight: 44 g
Housing color: Black
Red:
Type of fastening: Two M3 threaded sleeves
Via optional mounting device:
Recommended tightening torque for M3 fastening: 0.9 N·m
Compatibility of materials: ECOLAB
Type of display: LED
Number of LEDs: 2 Piece(s)
Ambient temperature, operation: -40 ... 60 °C
Ambient temperature, storage: -40 ... 70 °C
Degree of protection: IP 67
Protection class: III
Approvals: c UL US
Standards applied: IEC 60947-5-2
Specifications
General Information
- Manufacturer:Leuze
- Category:Electricals & Automation
