Pilz PSEN Kabel Winkel/cable angleplug 30m, 533140

Name: Pilz PSEN Kabel Winkel/cable angleplug 30m, 533140
Brand: PSEN
SKU: 533140
Price: 7212.431992787568 KES
Availability: InStock

Article number: 533140

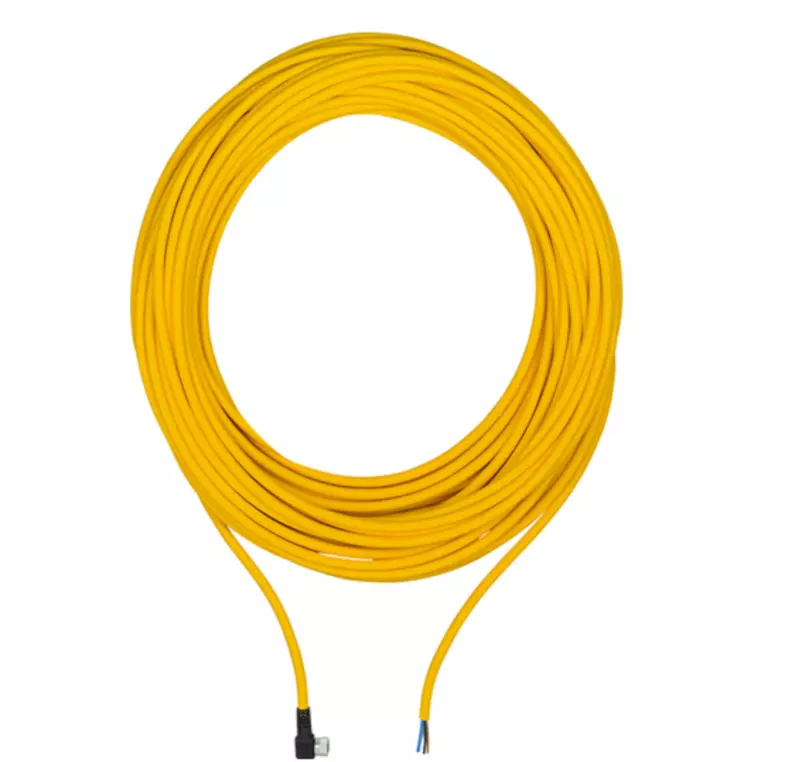

Pilz PSEN Kabel Winkel/cable angleplug 30m, 533140 Connection cable, PUR, yellow RAL1003, suitable for drag chains, 4-pin,socket angled M8, on open line end, A-coded, cable length: 30m

Download Datasheet (PDF)

PRICE EXCLUSIVE OF CUSTOMS AND DUTIES

Non-returnable

KES7,212

Customize

Product Details

General data

Approval

CE
UKCA
cULus Listed

Technical data

Electrical data

Rated current	4
Typ. conductor resistance K1	79 Ohm/km
Specific contact resistance K1	>= 7E+15 Ohm*cm
Specific conductor capacity K1	64.6pF/m

Environmental data

Ambient temperature	-25 80
Pollution degree clear.&creep.	3
Protection type, housing	IP67

Mechanical data

Connector type 1	4-pin M8 female connector
Shape of connector type 1	angled
Matl threaded ring conn 1	CuZn nickel-plated
Contact surfaces material 1	Au
Material of sockets	CuSn
Cable material K1	Cu
Insulation material cable K1	PP (9Y)
Cable type K1	LiF9Y11Y
Length cable	30
Tolerance of cable length K1
Colour cable insulation 1	Yellow, similar to RAL 1003
Housing colour	Black
Material of cable insulation 1	TPU / TPE-U PUR
Trailing capability of cable 1	yes
Bend radius (when laying) K1	5 x Ø
Max. outside diameter cable K1	4.7 4.7
Conductor cross section	0.25 0.25
Cable cross section AWG K1	24
Stranding K1	4 cores
Shielding K1	no
Number of conductors	4
Approvals for cable K1	UL AWM-Style 20233 UL/CSA
Approvals for connector 1	UL 94 HB
Halogen-free	yes
Oil resistance	resistant
Flame resistance	UL VW1
Housing material	PUR
Net weight	922
Gross weight	938
