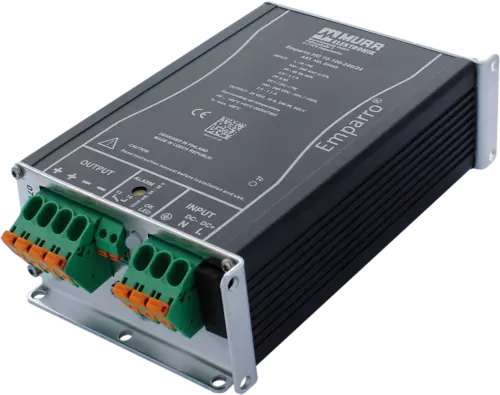

Murr EMPARRO HD POWER SUPPLY 1-PHASE, 85449

Parallel connection

Yes

Number of devices parallel connection max.

3

Series connection

Yes

Number of devices series connection max.

2

Protective measure

SELV

Power frequency

50 ... 60 Hz

Input voltage AC

240 V

Input voltage AC min.

90 V

Input voltage AC max.

265 V

Input voltage DC min.

90 V

Input voltage DC max.

370 V

Current input AC

1,2 A

Inrush current max.

7 A @ 240 V

Power factor

230 V AC

Efficiency

93.5 % @ 115 V AC 94.2 % @ 230 V AC

Characteristic back-up fuse

Inertia

Fuse protection primary side internal

6,3 A

Output voltage adjustable

Yes

Output voltage DC

24 V

Output voltage DC min.

24 V

Output voltage DC max.

28 V

Output current

10 A

Mains failure bridging min.

35 ms @ 100 V AC

Power Boost

150 %

Duration Power Boost min.

5 s

Spikes (s-s) max.

300 mV

Ripple effective max.

30 mV

Degree of protection (EN IEC 60529)

IP20

Overload protection output

Yes

Short-circuit protection output

Yes

Height

179 mm

Width

111 mm

Depth

53 mm

Suitable for mounting type

6 hole screw mounting

Interference emission

IEC/EN 55022, IEC 61000-3-2

Operating temperature min.

-40 °C

Operating temperature max.

80 °C

Derating

50 °C

Ambient temperature (storage, transport)

-40 °C … 85 °C

Relative humidity (operation)

5 % … 95 %

Additional condition relative humidity

no condensation

MTBF (EN/IEC 61709, EN ISO 13849-1, SN 29500)

1000000 h

Product standard

EN IEC 61010-2-201, EN 61204-3
