Power and Communication CablesPILZCables and plug-in connectors Pilz PSEN Kabel Winkel/cable angleplug 2m, 533110

Pilz PSEN Kabel Winkel/cable angleplug 2m, 533110

Article number: 533110

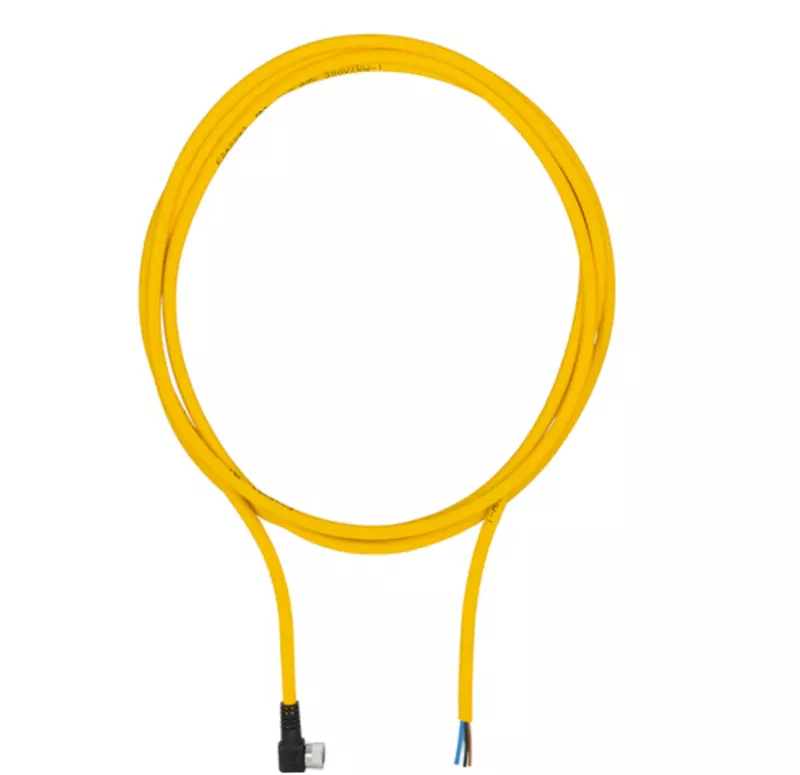

Pilz PSEN Kabel Winkel/cable angleplug 2m, 533110 Connection cable, PUR, yellow RAL1003, suitable for drag chains, 4-pin,socket angled M8, on open line end, A-coded, cable length: 2m

Download Datasheet (PDF)

PRICE EXCLUSIVE OF CUSTOMS AND DUTIES



Non-returnable
KES1,766
Customize
Product Details
General data
ApprovalCE
UKCA
cULus Listed

Technical data
Electrical data
Rated current4
Typ. conductor resistance K179 Ohm/km
Specific contact resistance K1>= 7E+15 Ohm*cm
Specific conductor capacity K164.6pF/m
Environmental data
Ambient temperature-25
80
Pollution degree clear.&creep.3
Protection type, housingIP67
Mechanical data
Connector type 14-pin M8 female connector
Shape of connector type 1angled
Matl threaded ring conn 1CuZn nickel-plated
Contact surfaces material 1Au
Material of socketsCuSn
Cable material K1Cu
Insulation material cable K1PP (9Y)
Cable type K1LiF9Y11Y
Length cable2
Tolerance of cable length K1
Colour cable insulation 1Yellow, similar to RAL 1003
Housing colourBlack
Material of cable insulation 1TPU / TPE-U
PUR
Trailing capability of cable 1yes
Bend radius (when laying) K15 x Ø
Max. outside diameter cable K14.7
4.7
Conductor cross section0.25
0.25
Cable cross section AWG K124
Stranding K14 cores
Shielding K1no
Number of conductors4
Approvals for cable K1UL AWM-Style 20233
UL/CSA
Approvals for connector 1UL 94 HB
Halogen-freeyes
Oil resistanceresistant
Flame resistanceUL VW1
Housing materialPUR
Net weight60
Gross weight67
