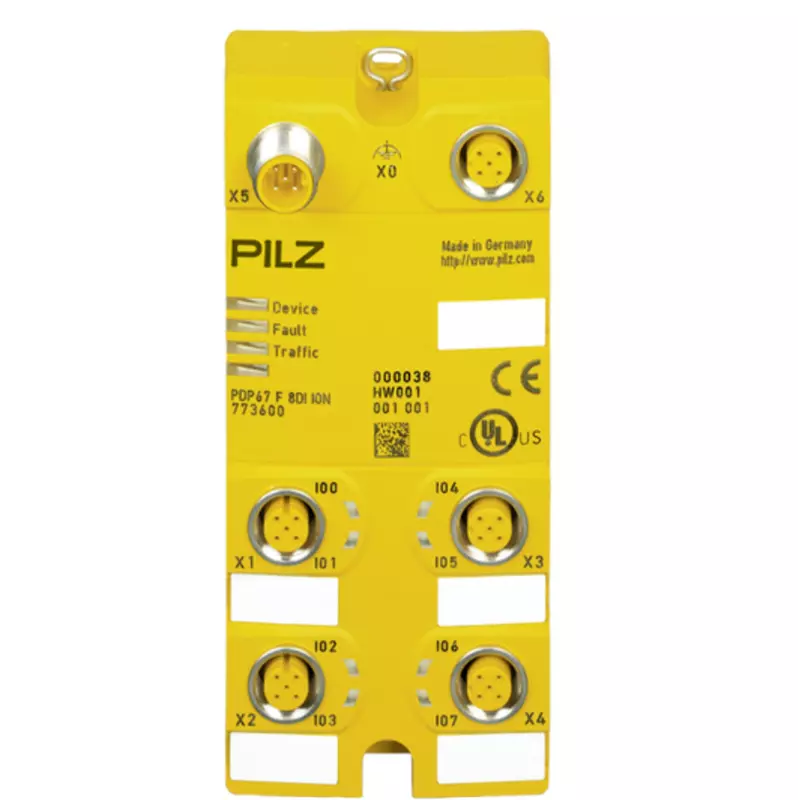

Pilz PDP67 F 8DI ION, 773600

Name: Pilz PDP67 F 8DI ION, 773600
Brand: PILZ
SKU: 773600
Price: 36758.3616 KES
Availability: InStock

Article Number: 773600

Pilz PDP67 F 8DI ION, 773600 Decentralised input module for PNOZmulti, protection type IP67,connection via connection module, 8 safe digital inputs, 8 outputs configurable as a standard, test pulse or 24 V.

Download Datasheet (PDF)

PRICE EXCLUSIVE OF CUSTOMS AND DUTIES

Non-returnable

KES36,758

Customize

Product Details

General data

Approval	CE UKCA cULus Listed KOSHA TÜV
Application range	Standard/Fail-safe

Technical data

Electrical data

Purpose of U1	Supply
Supply voltage (V)	24
Type of supply voltage U1	DC
Power consumption DC	1.2
Terminal V ind. loads off	-45 V
Permitted loads	ohmsch induktiv kapazitiv

Inputs

Number of inputs	8
Signal level at input at 0	-3 - +5 VDC
DC voltage at input	24 V
U input to EN 61131-2 Type 1	24 V DC
Input type to EN 61131-2	1, 3
Potential isolation input	nein

Semiconductor outputs

Function of S/C output	Testtaktausgang 24 V DC-Ausgang Standardausgang
DC voltage at output	24 V DC
Potential isolation of S/C O	nein
S/C output short circuit proof	ja

Environmental data

Climatic suitability to ...	EN 60068-2-78
Ambient temperature standard	EN 60068-2-14
Ambient temperature	-30
Storage temperature standard	EN 60068-2-1/-2
Climatic suitability standard	EN 60068-2-78
Humidity rating	P_FEUCHTE_WERT_93 % r. F. bei 40 °C
Condensation permitted?	Briefly
Perm. operating height ASL	2000 m
EMC to standard ...	EN 61000-4-8 EN IEC 61000-6-4 EN 61000-4-4 EN 61000-4-5 EN 61000-4-6 EN 61000-4-2 EN 61000-4-3
Vibration to standard ...	EN 60068-2-6
Acc. shock to standard1	15g
Acc. shock to standard2	10g
Clearance & creepage dist. to	IEC 60664-1
Overvoltage category	III
Pollution degree clear.&creep.	2
Protection type standard	EN 60529
Protection type, housing	IP67
Terminal protection type	IP67

Mechanical data

Housing material	PBT Valox 855 PET
Housing material upper part	Valox 855
Housing material label holder	PC
Connection terminal	M12
Terminal style	schraubverriegelt
Height dimension	133
Width dimension	60
Depth dimension	30
Net weight	250
Gross weight	270
