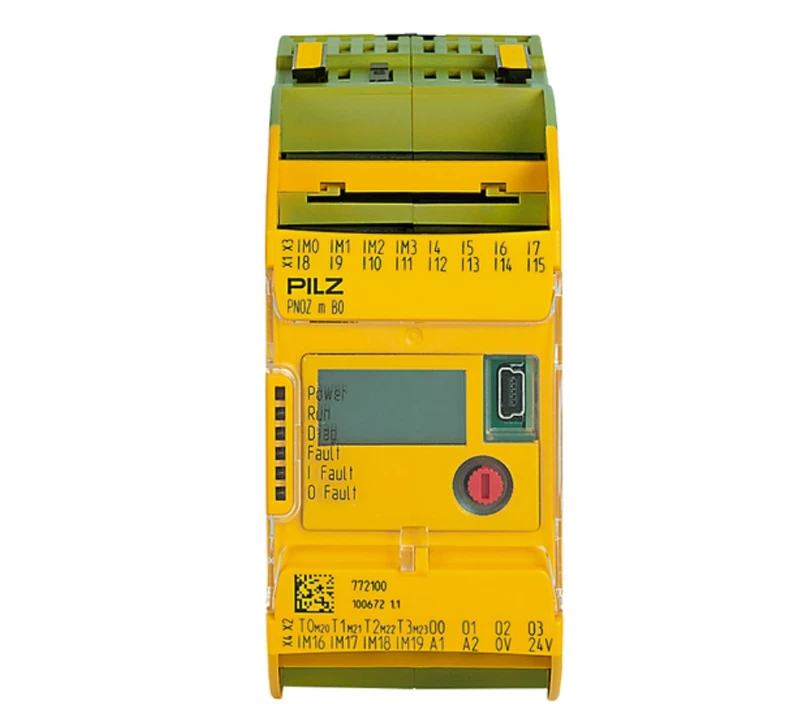

PILZ PNOZ m B0, 772100

Approval: CE, UKCA, cULus Listed, EAC (Eurasian), TÜV

Application range: Failsafe

Purpose of U1: Module supply

Supply voltage (V): 24 V

Type of supply voltage U1: DC

Power consumption DC: 204

Permitted loads: Resistive, Inductive, Capacitive

Number of configurable I/Os: 2

Potential isolation of IO: No

Short circ. prot. n/safe S/C O: Yes

Voltage at 1 n/safe S/C O: UB - 2 V at 0.1 A

Number of digital inputs: 6

U input to EN 61131-2 Type 1: 24 V DC

Potential isolation input: No

Potential isolation of S/C O: No

S/C output short circuit proof: Yes

Number of test pulse outputs: 2

Ambient temperature standard: EN 60068-2-14

Ambient temperature: 0

Storage temperature standard: EN 60068-2-1/-2

Climatic suitability standard: EN 60068-2-30, EN 60068-2-78

Condensation permitted?: Not permitted

Perm. operating height ASL: 2000 m

EMC to standard ...: EN 61131-2

Vibration to standard ...: EN 60068-2-6

Acc. shock to standard1: 15g

Clearance & creepage dist. To: EN 61131-2

Overvoltage category: II

Pollution degree clear.&creep.: 2

Protection type standard EN: 60529

Protection type, housing: IP20

Mounting position: horizontal on top hat rail

Housing material lower section: PC

Housing material front plate: PC

Housing material upper part: PC

Connection terminal: Spring-loaded terminal, Screw terminal

Terminal style: plug-in

Flex. cond. c/s AWG info: 24 - 12 AWG

Height dimension: 101.4 mm

Width dimension: 22.5 mm

Depth dimension: 120 mm

Net weight: 105 g

Gross weight: 110 g
