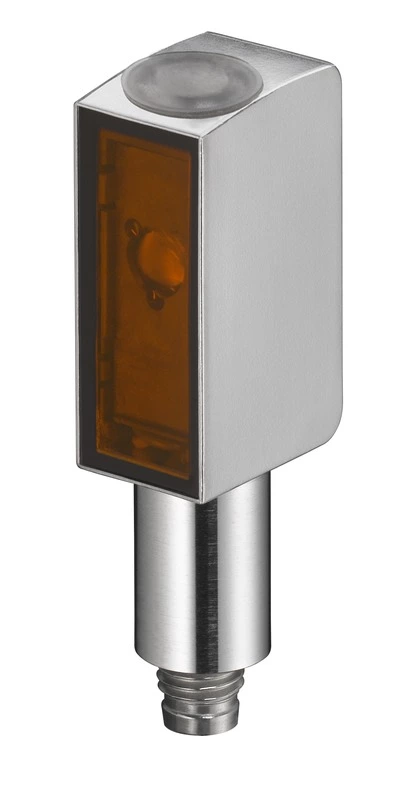

Leuze, ODT53CL1-2M/L6-M8, 50155120, Diffuse sensor with background suppression
Article Number: 50155120
Distance diffuse sensor with background suppression
PRICE EXCLUSIVE OF CUSTOMS AND DUTIES
Non-returnable
KES78,960.00
Customize
Share :
Product Details
Series: 53C
Operating principle: Distance diffuse sensor with background suppression
Special version: 2 independent switching outputs
HYGIENE design:
Measurement value output:
Black-white error: ± 20 mm
Operating range: 0.07 ... 2 m (guaranteed operating range)
Adjustment range: 50 ... 2,500 mm
Beam path: Focused
Light source: Laser, Red
Wavelength: 680 nm
Laser class: 1, IEC 60825-1:2014 / EN 60825-1:2014+A11:2021
Transmitted-signal shape: Pulsed
Light spot size [at sensor distance]: 10 mm x 10 mm [100 mm]
Type of light spot geometry: Round
Shift angle: Typ. ± 1.5°
Measurement range: 50 ... 2,500 mm
Resolution: 1.0 mm
Accuracy: -20 ... 20 mm
Reproducibility (1 sigma): 0 ... 8 mm
Measurement value output: via IO-Link
Optical distance measurement principle: Time of flight
Protective circuit: Polarity reversal protection
Short circuit protected:
Transient protection:
Supply voltage UB: 10 ... 30 V, DC, Incl. residual ripple
Residual ripple: 0 ... 15 %, From UB
Open-circuit current: 0 ... 35 mA
Number of digital switching outputs: 2 Piece(s)
Type: Digital switching output
Switching current, max.: 90 mA
Switching element: Transistor, Push-pull
Switching principle: IO-Link / light switching (PNP)/dark switching (NPN)
Switching element: Transistor, Push-pull
Switching principle: Light switching (PNP)/dark switching (NPN)
Switching frequency: 7 ... 15 Hz, depending on diffuse reflectance
Response time: 33 ... 70 ms, depending on diffuse reflectance
Readiness delay: 300 ms
Type: IO-Link
COM mode: COM3
Profile: Smart sensor profile
Min. cycle time: COM3 = 0.6 ms
Frame type: 2.V
Specification: V1.1
Device ID: 2226
SIO-mode support: Yes
Number of connections: 1 Piece(s)
Function: Signal IN
Signal OUT:
Voltage supply:
Type of connection: Connector
Thread size: M8
Type: Male
Material: Stainless steel
No. of pins: 4 -pin
Dimension (W x H x L): 14 mm x 35.4 mm x 20.4 mm
Housing material: Stainless steel
Stainless steel housing: AISI 316L, DIN X2CrNiMo17132, W.No1.4404
Housing roughness: Ra ≤ 0,8, Typical value for the stainless steel housing
Lens cover material: Plastic (PMMA+) with scratch-resistant Indium protective coating
Net weight: 48 g
Housing color: Silver
Type of fastening: Housing fit
Compatibility of materials: CleanProof+
ECOLAB:
Johnson Diversey:
Type of display: LED
Number of LEDs: 2 Piece(s)
Ambient temperature, operation: -30 ... 50 °C
Ambient temperature, storage: -40 ... 70 °C
Degree of protection: IP 67
IP 68:
IP 69K:
Protection class: III
Approvals: c UL US
Standards applied: IEC 60947-5-2
Specifications
General Information
- Manufacturer:Leuze
- Category:Electricals & Automation
