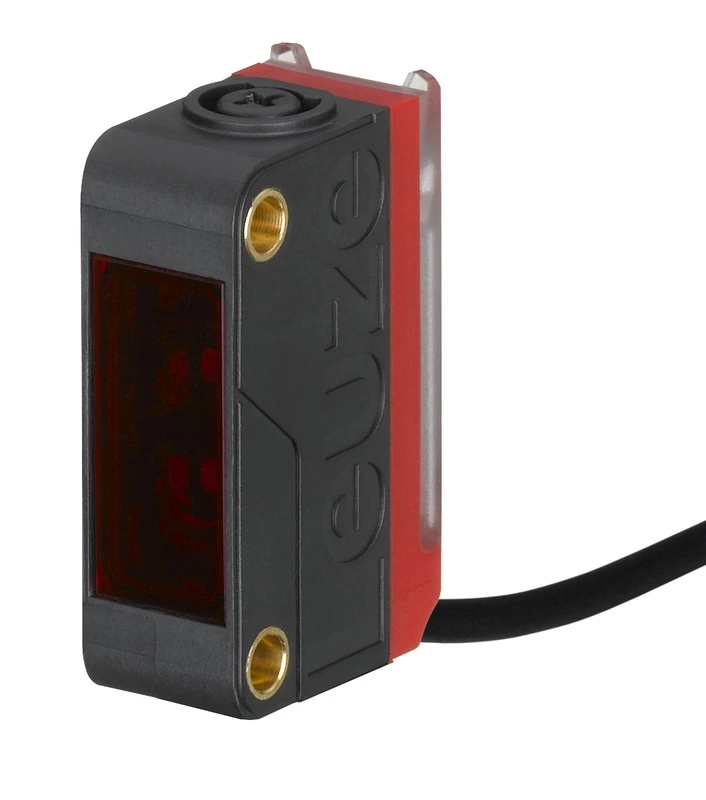

Leuze, PRK5BPP.H1/2, 50155471, Polarized retro-reflective photoelectric sensor
Article Number: 50155471
Polarized reflective light barrier
PRICE EXCLUSIVE OF CUSTOMS AND DUTIES
Non-returnable
KES18,071
Customize
Share :
Product Details
series: 5B
Operating principle: Reflection principle
application: Highly transparent film,
empty bottles,:
transparent containers:
Operating range: 0.03 ... 4.5 m (guaranteed range), with reflector TKS 100x100
Border range: 0.03 ... 5.5 m (typical range), with reflector TKS 100x100
light source: Power PinPoint® LED, red
wavelength: 645 nm
Transmission signal shape: pulsed
LED group: Free group (according to EN 62471)
protective circuit: Short-circuit protection, reverse polarity
protection:
Supply voltage U B: 10 ... 30 V, DC, including ripple
Residual ripple: 0 ... 15% of U B
Idle current: 0 ... 20 mA
Number of digital switching outputs: 1 pc.
Art: Digital switching output
Switching element: NPN transistor
Switching principle: light-switching
(dark-switching by reversing the polarity of U B ):
Switching frequency: 1,000 Hz
response time: 0.5 ms
Readiness delay: 300 ms
Number of connections: 1 pc.
function: Signal OUT
power supply:
Type of connection: Line
Cable length: 2,000 mm
Material Coat: PVC
wire color: black
Number of wires: 3-core
Vein cross-section: 0.14 mm²
Dimensions (W x H x L): 11 mm x 32.4 mm x 20 mm
Housing material: plastic
Plastic housing: PC-ABS
Material optical cover: plastic
Net weight: 44 g
Case color: red
black:
Type of fastening: Two M3 threaded sleeves
via optional mounting part:
Recommended tightening torque for M3 fastener: 0.9 N·m
Material compatibility: ECOLAB
Type of display: LED
Number of LEDs: 2 pcs.
Ambient temperature operation: -40 ... 60 °C
Ambient temperature storage: -40 ... 70 °C
Protection class: IP 67
Protection class: III
Approvals: c UL US
Valid standards: IEC 60947-5-2
