Electrical & Automation Electrical[SY-100-1]Control & Signaling PILZ PITgatebox - pushbutton unit

Pilz PIT gb RLLE y down ETH, G1000021

Name: Pilz PIT gb RLLE y down ETH, G1000021
Brand: PIT
SKU: G1000021
Price: 83016.9648 KES
Availability: InStock

Article number: G1000021

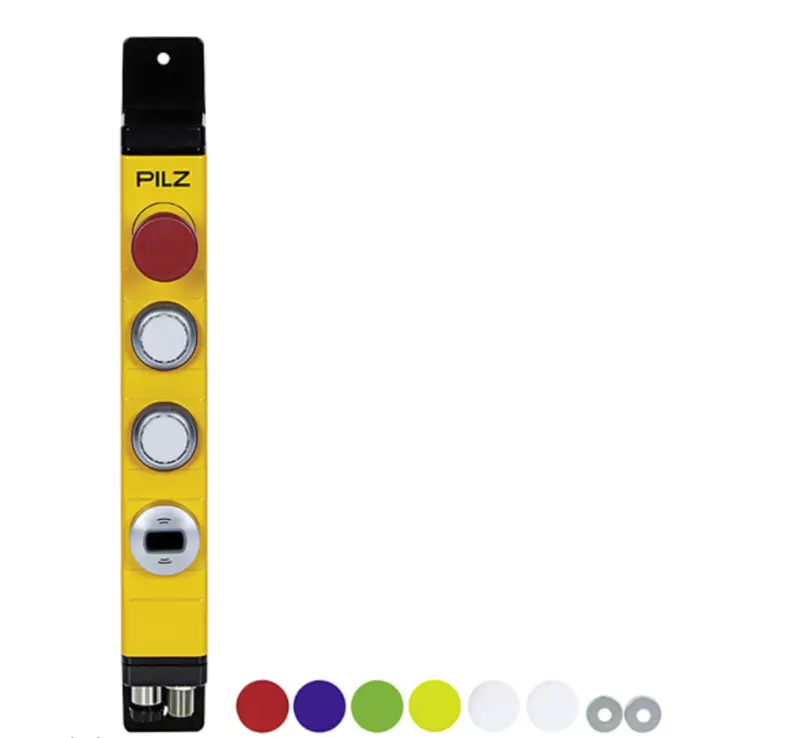

Pilz PIT gb RLLE y down ETH, G1000021 PITgatebox with PITreader Key (pushbutton unit), housing with E-STOP (2NC/1 NO), 2 illuminated pushbuttons (1 NO each) and PITreader Key, bottom connection, M12, 12-pin male connector and M12, 4-pin female connector, Ethernet interface, IP65, 5 coloured caps in GN, BU, RD, YE and transparent

Download Datasheet (PDF)

PRICE EXCLUSIVE OF CUSTOMS AND DUTIES

Non-returnable

KES83,017

Customize

Product Details

General data

Approval	CE UKCA UL/cUL FCC IC EAC (Eurasian)
Self-monitored	no
Lamp	LED
Lamp colour	white

Technical data

Electrical data

Supply voltage (V)	24 V
Type of supply voltage U1	DC
Type of power supply for U1	SELV/PELV
Power consumption DC	3.5 W
Min. contact current	1 mA

Emergency stop

Number, E-STOP N/C	2
Number, E-STOP signal contact	1
Release type emergency stop	Turn release
Switch cap. E-STOP to standard	EN 60947-5-1
Contact material E-STOP	Au

Push button

Number, pushbutton	2
Number of pushbutton N/O	2
Switch cap. p/b to standard	EN 60947-5-1
Contact material pushbutton	Ag

PITreader

Sensor principle PITreader	Transponder
Transponder energy supply	Passive (battery-free)
Operating frequency PITreader	13.24 - 13.88 MHz
Galv. isolation of S/C outputs	No
S/C output short circuit proof	Yes
Signal level at input at 1	15 - 30 VDC
Galv. isolation input	No

Ethernet interface

Ethernet IP addr. factory set	192.168.0.12
Connector type ETHERNET int.	M12x1, 4-pin, D-code
Ethernet transmission rate	10/100 Mbit/s
Number of Ethernet interfaces	1

Environmental data

Ambient temperature	-20 °C
Climatic suitability standard	EN 60068-2-78
Humidity rating	93 % r. h. at 40 °C
EMC to standard ...	EN 301489-1 V2.1.1
Vibration to standard ...	EN 60947-5-2
Acc. shock to standard1	30g
Clearance & creepage dist. to	EN 60947-1
Overvoltage category	III
Pollution degree clear.&creep.	3
Protection type, housing	IP65
UL enclosure type	type 1

Mechanical data

Mounting position	any
Connection type	M12, 12-pin male
Housing material	Zn
Connection terminal	M12
Height dimension	320 mm
Width dimension	40 mm
Depth dimension	40 mm
Net weight	920 g
Gross weight	1320 g
