Electrical & Automation Automation [SY-100-2]Sensor technology PILZ Safety switches with guard locking Mechanical safety switch PSENmech

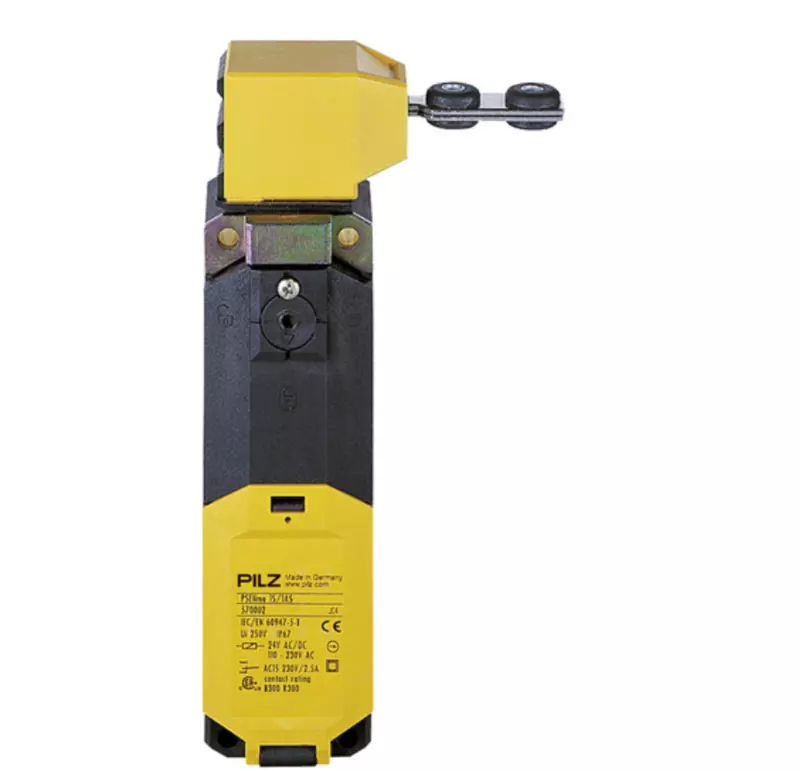

Pilz PSEN me1S / 1AS, 570000

Name: Pilz PSEN me1S / 1AS, 570000
Brand: PSEN
SKU: 570000
Price: 21973.43997802656 KES
Availability: InStock

Article number: 570000

Pilz PSEN me1S / 1AS, 570000 Safety gate system with guard locking, with standard actuator, interlocking principle spring force, contacts 2 n/o, 2 n/c, supply voltage 24 V AC/DC.

Download Datasheet (PDF)

PRICE EXCLUSIVE OF CUSTOMS AND DUTIES

KES21,973

Customize

Product Details

General data

Approval	CCC CE UKCA BG cCSAus EAC (Eurasian)
unit type	Unit

Technical data

Electrical data

Supply voltage (V)	24 V
Type of supply voltage U1	AC/DC
Power consumption AC	4.4 VA
Power consumption DC	4.4 W

Relay outputs

Utilisation cat. AC/DC1 stand.	EN 60947-4-1
Voltage AC1 safety cont.	240 V
Max. current AC1 safety cont.	2.5 A
Utilisation cat. AC15/DC13sta.	EN 60947-5-1
Voltage AC15 safety cont.	230 V
Max. current AC15 safety cont.	2.5 A

Environmental data

Ambient temperature	-25 - 70 °C
Protection type, housing	IP67

Mechanical data

Holding force	1500 N
Connection terminal	Spring-loaded terminal
Terminal style	fixed
Height dimension	184 mm
Width dimension	42.5 mm
Depth dimension	51 mm
Net weight	337 g
Gross weight	416 g

Specifications

General Information

Category

:
Electricals & Automation
