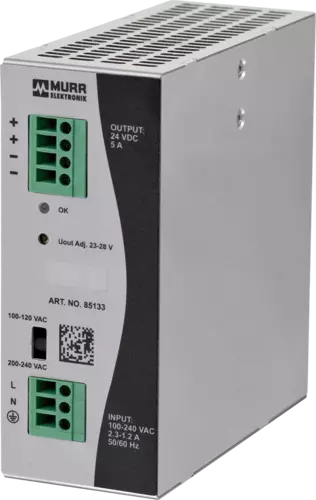

Murr, ECO-RAIL-2 Power Supply 1-PHASE, 85133

Parallel connection

No

Series connection

Yes

Number of devices series connection max.

2

Power frequency

50 ... 60 Hz

Input voltage AC min.

100 V

Input voltage AC max.

240 V

Nominal input voltage AC

100 V … 240 V

Nominal current AC

2.4 A @ 100 V,1.2 A @ 240 V

Inrush current max.

20 A @ 230 V

Efficiency

87 % @ 115 V AC 88 % @ 230 V AC

Characteristic back-up fuse

Inertia

Fuse protection primary side internal

5 A

Output voltage adjustable

Yes

Output voltage DC

24 V

Output voltage DC min.

23 V

Output voltage DC max.

28 V

Output current

5 A

Spikes (s-s) max.

50 mV

Ripple effective max.

10 mV

Degree of protection (EN IEC 60529)

IP20

Overload protection output

Yes

Short-circuit protection output

Yes

Height

125 mm

Width

50 mm

Depth

123 mm

Mounting method

geschnappt

Suitable for mounting type

Mounting rail TH35, (EN 60715)

Interference emission

IEC 61000-3-2

Operating temperature min.

0 °C

Operating temperature max.

40 °C

Derating

40 °C

Ambient temperature (storage, transport)

-20 °C … 85 °C

Relative humidity (operation)

20 % … 90 %

Additional condition relative humidity

no condensation

Product standard

EN IEC 61010-2-201
