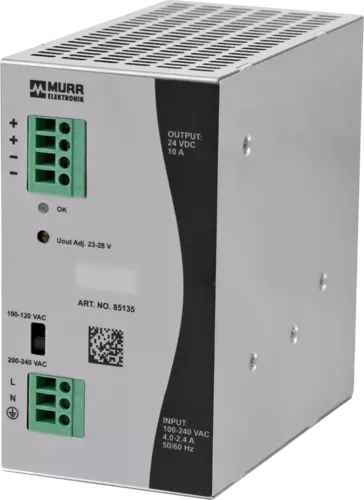

Electrical data
Parallel connection | No |
Series connection | Yes |
Number of devices series connection max. | 2 |
Electrical data | Supply
Power frequency | 50 ... 60 Hz |
Electrical data | Input
Nominal input voltage AC | 100 V … 240 V |
Input voltage 1 AC min. | 90 V |
Input voltage 1 AC max. | 132 V |
Input voltage 2 AC min. | 173 V |
Input voltage 2 AC max. | 264 V |
Nominal current AC | 4.3 A @ 100 V,2.1 A @ 240 V |
Inrush current max. | 18 A @ 230 V |
Efficiency | 86 % @ 115 V AC 87 % @ 230 V AC |
Characteristic back-up fuse | Inertia |
Fuse protection primary side internal | 5 A |
Electrical data | Output
Output voltage adjustable | Yes |
Output voltage DC | 24 V |
Output voltage DC min. | 23 V |
Output voltage DC max. | 28 V |
Output current | 10 A |
Spikes (s-s) max. | 50 mV |
Ripple effective max. | 10 mV |
Device protection | Electrical
Degree of protection (EN IEC 60529) | IP20 |
Overload protection output | Yes |
Short-circuit protection output | Yes |
Mechanical data | Mounting data
Height | 125 mm |
Width | 68 mm |
Depth | 125 mm |
Mounting method | geschnappt |
Suitable for mounting type | Mounting rail TH35, (EN 60715) |
Environmental characteristics | Electromagnetic compatibility
Interference emission | IEC 61000-3-2 |
Environmental characteristics | Climatic
Operating temperature min. | 0 °C |
Operating temperature max. | 40 °C |
Derating | 40 °C |
Ambient temperature (storage, transport) | -20 °C … 85 °C |
Relative humidity (operation) | 20 % … 90 % |
Additional condition relative humidity | no condensation |
Conformity
Product standard | EN IEC 61010-2-201 |
