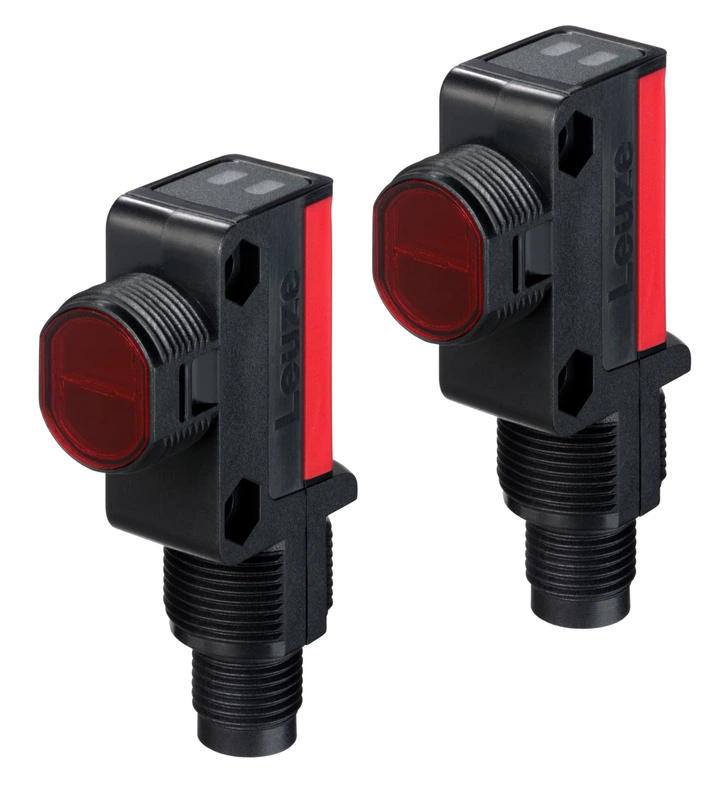

Leuze, SET LS28/9D-M12+LE28/PX-M12, 50154157, Throughbeam photoelectric sensor transmitter set
Article Number: 50154157
Throughbeam photoelectric sensor receiver
PRICE EXCLUSIVE OF CUSTOMS AND DUTIES
Non-returnable
KES34,065.60
Customize
Share :
Product Details
Series: 28
Operating principle: Throughbeam principle
Device type: Set (transmitter and receiver)
Special version: Article set
Operating range: 0 ... 10 m (guaranteed operating range)
Operating range limit: 0 ... 15 m (typical operating range)
Protective circuit: Polarity reversal protection
Short circuit protected:
Supply voltage UB: 10 ... 30 V, DC, Incl. residual ripple
Residual ripple: 0 ... 15 %, From UB
Open-circuit current: 0 ... 15 mA
Number of digital switching outputs: 1 Piece(s)
Type: Digital switching output
Switching element: Transistor, PNP
Switching principle: Dark switching
Switching frequency: 500 Hz
Response time: 1 ms
Readiness delay: 300 ms
Number of connections: 1 Piece(s)
Function: Signal OUT
Voltage supply:
Type of connection: Connector
Thread size: M12
Type: Male
Material: Plastic
No. of pins: 4 -pin
Encoding: A-coded
Dimension (W x H x L): 15 mm x 46.5 mm x 31.8 mm
Thread size: M18
Housing material: Plastic
Plastic housing: ABS
Lens cover material: Plastic
Net weight: 75 g
Housing color: Black
Red:
Recommended tightening torque for M3 fastening: 0.9 N·m
Type of display: LED
Number of LEDs: 2 Piece(s)
Ambient temperature, operation: -40 ... 60 °C
Ambient temperature, storage: -40 ... 70 °C
Degree of protection: IP 67
Protection class: III
Approvals: c UL US
Standards applied: IEC 60947-5-2
