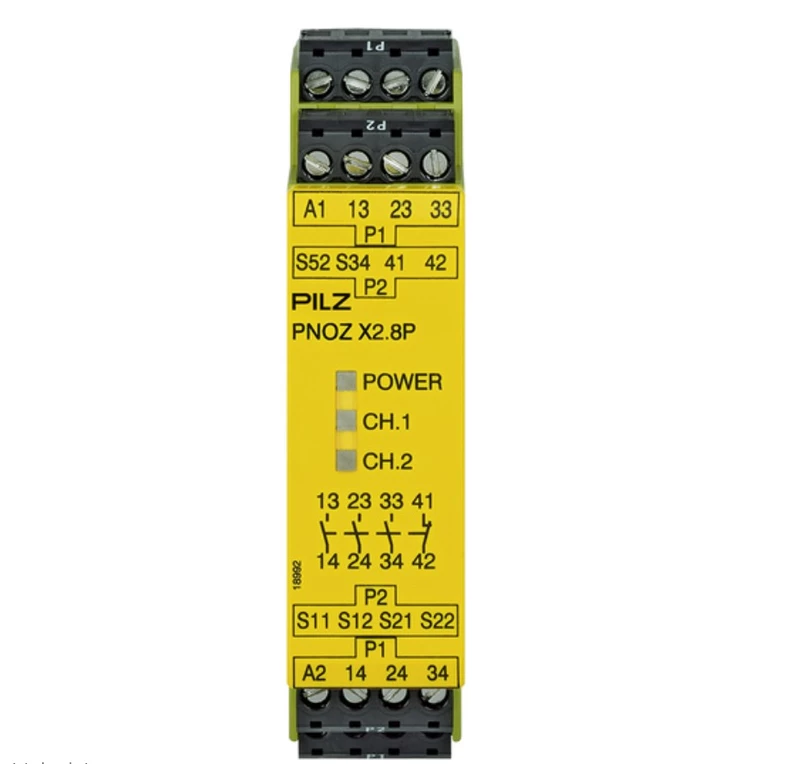

PILZ PNOZ X2.8P 24VACDC 3n/o 1n/c, 777301

Approval: CCC, CE, UKCA, cULus Listed, KOSHA, EAC (Eurasian), TÜV

Supply voltage (V): 24 V
Type of supply voltage U1: AC/DC
Power consumption AC: 5.5 VA
Power consumption DC: 2.5 W

Number of inputs: 2

Number of semicond. outputs:0

Utilisation cat. AC/DC1 stand.: EN 60947-4-1
Voltage AC1 safety cont.:240V
Max. current AC1 safety cont.:6 A
Voltage DC1 safety cont.:24 V
Max. current DC1 safety cont.:6 A
Utilisation cat. AC15/DC13sta.:EN 60947-5-1
Voltage AC15 safety cont.:230 V
Max. current AC15 safety cont.:5 A
Voltage DC13 safety cont.:24 V
Safety contacts: AC at UL:240 VAC G.U. (same polarity)
Safety contacts: pilot duty.:R300
Relay contact material:AgCuNi
Addit. contact details relay: + 0.2 µm Au

Climatic suitability to ...:EN 60068-2-78
Ambient temperature: -35  °C
Humidity rating: 93 % r. h. at 40 °C
Condensation permitted: Not permitted
EMC to standard ...:EN 60947-5-1, EN 61000-6-2, EN 61000-6-4, EN 61326-3-1
Vibration to standard ...:  EN 60068-2-6
Clearance & creepage dist. to:  EN 60947-1
Overvoltage category:  III / II
Pollution degree clear.&creep.: 2
Protection type, housing:  IP40

Mounting position: any
Housing material lower section:ABS UL 94 V0
Connection terminal:Screw terminal
Terminal style:plug-in
Flex. cond. c/s AWG info: 24 - 12 AWG
Height dimension:94 mm
Width dimension:22.5 mm
Depth dimension:121 mm
Net weight:185 g
Gross weight:195 g
