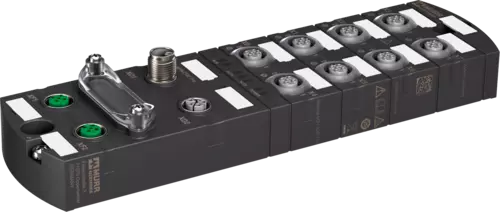

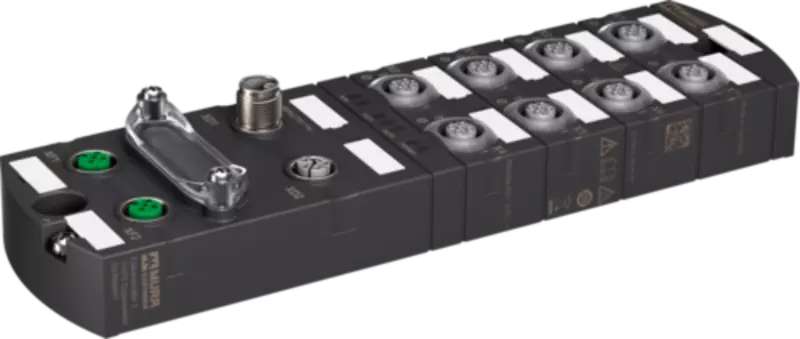

Murr IMPACT67 Pro E DIO8 IOL8 M12L 5P, 54631

Norm operating voltage

IEC/EN 61131-2

Operating voltage US DC

24 V

Total current US max.

16 A

Operating voltage UA DC

24 V

Total current UA max.

16 A

Sensor current US per input max.

2 A

Current carrying capacity max.

10 A

Short-circuit protected

Yes

Overload resistant

Yes

Type input

for 3-wire sensors or mechanical switches, IO-Link Devices, PNP

Output current per pin max.

2 A

Max. current output per port

4 A

Actuator current UA per output max.

2 A

Total current outputs max.

10 A

Overload resistant

Yes

Short-circuit protected

Yes

Web interface

Yes

Addressing

BOOTP, DIP switch, DHCP

CIP Sync

Yes

Device Level Ring (DLR)

Yes

Multiple connections

Yes

Composite Test Revision

CT16

type

8× Master

Port Class

A, B

transmission rate

COM1, COM2, COM3

process data length input

32 bytes

process data length output

32 bytes

Automatic baudrate detection

automatic

JSON integration

REST-API, MQTT

OPC UA transport

UA TCP, UA Binary Encoding, UA Secure Conversation

Publishing interval OPC UA min.

100 ms

Number of sessions / clients OPC UA max.

5

Actuator warning

per channel via LED and BUS

Temperature control

Yes

Cable break

per port

Diagnostic via BUS

per module and channel

Diagnostic via LED

per module and channel

LED display

Ethernet connection/data traffic

IO-Link events

Undervoltage supply, No voltage

Current Monitoring

Yes

Voltage monitoring

Yes

Degree of protection (EN IEC 60529)

IP67

Height

37 mm

Width

63 mm

Depth

225 mm

Suitable for mounting type

2-hole screw mounting

Ambient temperature (operation)

-40 °C … 70 °C

Ambient temperature (storage, transport)

-40 °C … 85 °C
