Pilz PSEN op2H-s-30-045/1, 630722

Name: Pilz PSEN op2H-s-30-045/1, 630722
Brand: PSEN
SKU: 630722
Price: 113652.2665530144 KES
Availability: InStock

Article number: 630722

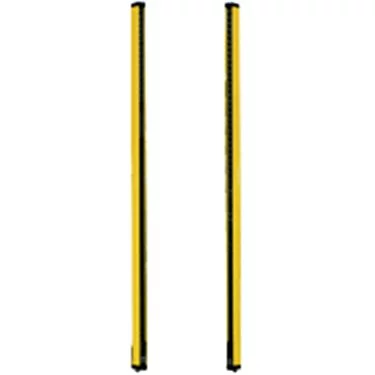

PSEN PSEN op2H-s-30-045/1, 630722 Safety light guard, Type 2, PL c, hand protection (resolution 30 mm), protected field height 450 mm, supply voltage 24 V, connector M12, transmitter: 4-pin, receiver: 5-pin, connection cable not supplied with the device.

Download Datasheet (PDF)

PRICE EXCLUSIVE OF CUSTOMS AND DUTIES

KES113,652

Customize

Product Details

General data

Approval	CE cULus Listed TÜV EAC (Eurasian)
ESPE type	2
Sensor principle	optical
Height of protected field	450
Resolution protection type	Hand
Operating range (m)	0.2 19

Technical data

Electrical data

Supply voltage (V)	24 24
Type of supply voltage U1	DC

Optical data

Used wavelength range

950 nm

Semiconductor outputs

Number of OSSD outputs

2

Environmental data

Ambient temperature	0 55
Climatic suitability standard	EN 60068-2-3
Humidity rating	95 % r. h. at 40 °C
Condensation permitted?	Not permitted
Vibration to standard ...	EN 60068-2-6
Acc. shock to standard1	10g
Protection type standard	EN 60529
Protection type, housing	IP65

Times

Reaction time

11
11

Mechanical data

Housing material upper part	Aluminium
Height dimension	533.2
Width dimension	32.3
Depth dimension	36.9
Net weight	2000
Gross weight	2500
