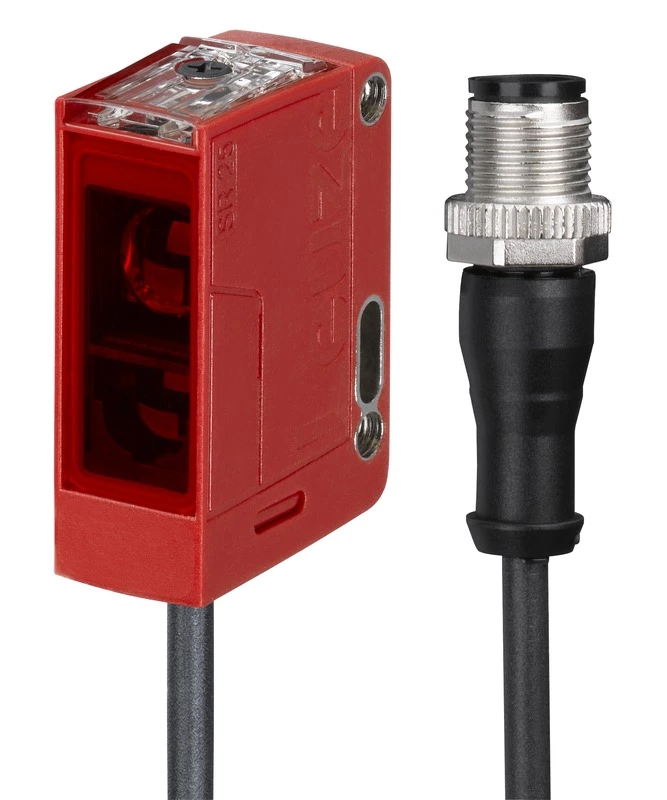

Leuze, HT25CPP-500F/PX-200-M12, 50154284, Diffuse sensor with background suppression
Article Number: 50154284
Distance sensor background suppression
PRICE EXCLUSIVE OF CUSTOMS AND DUTIES
Non-returnable
KES42,435
Customize
Share :
Product Details
series: 25°C
Operating principle: Touch principle with background suppression
Special edition: fixed sensing range
black and white error: < 10% up to 400 mm
Operating range: 0 ... 0.5 m (guaranteed range)
Border range: 0 ... 0.5 m (typical range)
light source: LED, red
Power PinPoint® LED:
wavelength: 660 nm
Transmission signal shape: pulsed
LED group: Free group (according to EN 62471)
Light spot size [at sensor distance]: 8 mm [400 mm]
Type of light spot geometry: around
protective circuit: Short-circuit protection, reverse polarity
protection:
Supply voltage U B: 10 ... 30 V, DC, including ripple
Residual ripple: 0 ... 15% of U B
Idle current: 0 ... 20 mA
Number of digital switching outputs: 1 pc.
Art: Digital switching output
Switching element: Transistor, PNP
Switching principle: dark-switching
Switching frequency: 1,000 Hz
response time: 0.5 ms
Readiness delay: 300 ms
Number of connections: 1 pc.
function: Signal OUT
power supply:
Type of connection: Cable with round connector
Cable length: 200 mm
Material Coat: PURE
wire color: black
Vein cross-section: 0.2 mm²
Thread size: M12
type: male
material: PURE
Number of poles: 4-pin
Coding: A-coded
Dimensions (W x H x L): 15 mm x 42.7 mm x 30 mm
Housing material: plastic
Plastic housing: ABS
Material optical cover: plastic
Net weight: 100 g
Case color: red
Type of fastening: Through-mounting with M4 thread
via optional mounting part:
Recommended tightening torque for M3 fastener: 0.9 N·m
Recommended tightening torque for M4 fasteners: 1.4 N·m
Material compatibility: ECOLAB
Type of display: LED
Number of LEDs: 2 pcs.
Controls: Multi-speed spindle
Function of the control element: Sensing range setting
Ambient temperature operation: -40 ... 60 °C
Ambient temperature storage: -40 ... 70 °C
Protection class: IP 67
IP 69K:
Protection class: III
Approvals: c UL US
Valid standards: IEC 60947-5-2
