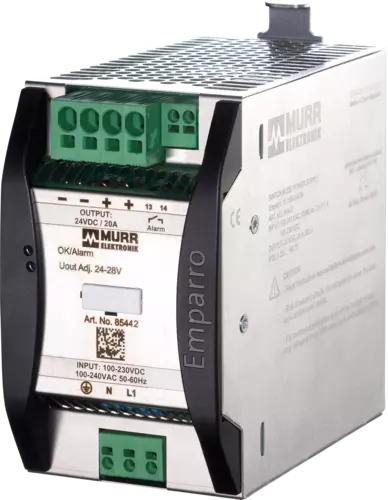

Murr EMPARRO POWER SUPPLY 1-PHASE, 85442

Parallel connection

Yes

Number of devices parallel connection max.

5

Series connection

Yes

Number of devices series connection max.

2

Protective measure

SELV

Power frequency

50 ... 60 Hz

Input voltage AC min.

90 V

Input voltage AC max.

265 V

Nominal input voltage AC

100 V … 240 V

Input voltage DC min.

90 V

Input voltage DC max.

250 V

Nominal current AC

5.2 A @ 100 V,2.2 A @ 240 V

Inrush current max.

23 A @ 230 V

Power factor

230 V AC

Efficiency

91.7 % @ 110 V AC 94.1 % @ 230 V AC

Characteristic back-up fuse

Inertia

Fuse protection primary side internal

10 A

Output voltage adjustable

Yes

Output voltage DC

24 V

Output voltage DC min.

24 V

Output voltage DC max.

28 V

Output current

20 A

Mains failure bridging min.

30 ms @ 100 V AC

Power Boost

150 %

Duration Power Boost min.

4 s

Spikes (s-s) max.

200 mV

Ripple effective max.

50 mV

Connection

Push-In spring clamp terminals

Degree of protection (EN IEC 60529)

IP20

Overload protection output

Yes

Short-circuit protection output

Yes

Height

123 mm

Width

85 mm

Depth

138 mm

Mounting method

geschnappt

Suitable for mounting type

Mounting rail TH35, (EN 60715)

Interference emission

EN IEC 55011, IEC 61000-3-2

Operating temperature min.

-40 °C

Operating temperature max.

60 °C

Derating

45 °C

Ambient temperature (storage, transport)

-40 °C … 80 °C

Relative humidity (operation)

5 % … 95 %

Additional condition relative humidity

no condensation

Product standard

EN IEC 61010-2-201, EN 61204-3

SEMI F47

compliant
