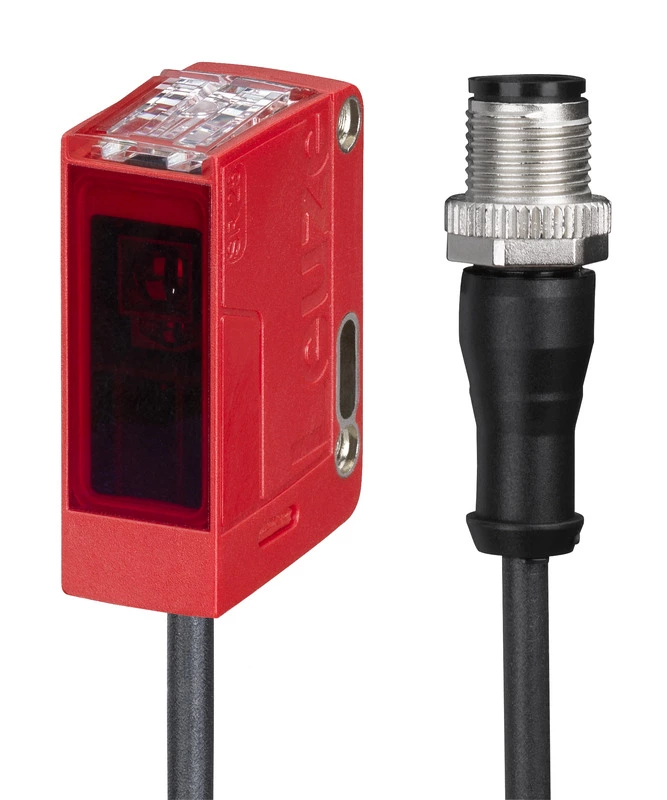

Electrical & AutomationAutomation [SY-100-2]Sensor technologyLeuzeOptical Sensors (Switching sensors)Diffuse sensors Leuze, ODT25CL1-3M.3/L6-200-M12, 50154567, Diffuse sensor with background suppression
Leuze, ODT25CL1-3M.3/L6-200-M12, 50154567, Diffuse sensor with background suppression
Article Number: 50154567
One-way light barrier transmitter
PRICE EXCLUSIVE OF CUSTOMS AND DUTIES
Non-returnable
KES63,619
Customize
Share :
Product Details
series: 25°C
Operating principle: Distance sensor with background suppression
Special edition: 2 independent switching outputs,
measured value output:
black and white error: ±20 mm, see diagram
Operating range: 0.07 ... 3 m (guaranteed range)
Adjustment range: 50 ... 3,500 mm
Beam path: focused
light source: Laser, red
wavelength: 680 nm
Laser class: 1, IEC 60825-1:2014 / EN 60825-1:2014+A11:2021
Transmission signal shape: pulsed
Type of light spot geometry: around
Error angle: typ. ± 2.5°
Measuring range: 50 ... 3,500 mm
resolution: 1.0 mm
accuracy: -20 ... 20 mm
Reproducibility (1 Sigma): 0 ... 13 mm
Measured value output: via IO-Link
Optical distance measurement principle: Time of Flight
protective circuit: Short-circuit protection,
transient protection, reverse polarity:
protection:
Supply voltage U B: 10 ... 30 V, DC, including ripple
Residual ripple: 0 ... 15% of U B
Idle current: 0 ... 35 mA
Number of digital switching outputs: 2 pcs.
Art: Digital switching output
Switching current, max.: 90 mA
Switching element: Transistor, push-pull
Switching principle: IO-Link / light-switching (PNP) / dark-switching (NPN)
Switching element: Transistor, push-pull
Switching principle: light-switching (PNP)/dark-switching (NPN)
Switching frequency: 7 ... 15 Hz, depending on the degree of remission
response time: 33 ... 70 ms, depending on the degree of remission
Readiness delay: 300 ms
Art: IO-Link
COM mode: COM3
Profile: Smart Sensor Profile
Minimum cycle time: COM3 = 0.6 ms
Frame type: 2.V
specification: V1.1
Device ID: 2221
SIO mode support: Yes
Number of connections: 1 pc.
function: Signal IN
Signal OUT:
Power supply:
Type of connection: Cable with round connector
Cable length: 200 mm
Material Coat: PURE
wire color: black
Number of wires: 4-core
Vein cross-section: 0.2 mm²
Thread size: M12
type: male
material: plastic
Number of poles: 4-pin
Coding: A-coded
Dimensions (W x H x L): 15 mm x 42.7 mm x 30 mm
Housing material: plastic
Plastic housing: PC-ABS
Material optical cover: Plastic / PMMA
Net weight: 30 g
Case color: red
Type of fastening: Through-mounting
via optional mounting bracket:
Recommended tightening torque for M3 fastener: 0.9 N·m
Material compatibility: ECOLAB
Type of display: LED
Number of LEDs: 2 pcs.
Controls: Teach button
Function of the control element: Light/dark switching,
touch range adjustment:
Ambient temperature operation: -30 ... 50 °C
Ambient temperature storage: -40 ... 70 °C
Protection class: IP 67
IP 69K:
Protection class: III
Approvals: c UL US
Valid standards: IEC 60947-5-2
