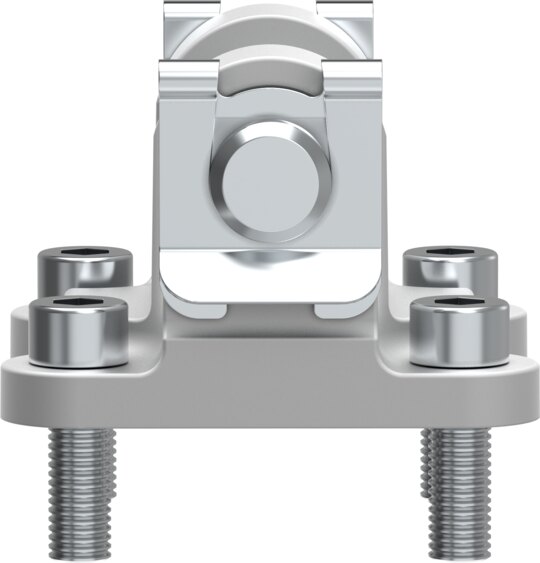

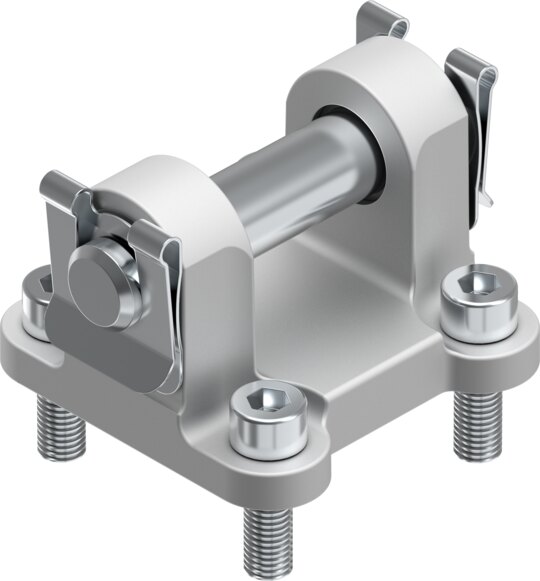

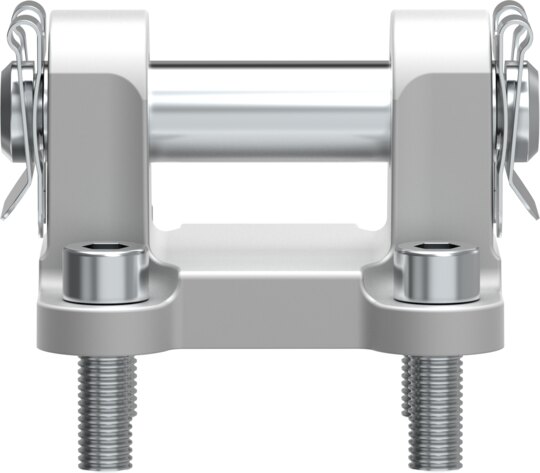

Festo, Swivel flange SNCB-40, 174391

Technical Data Swivel flange SNCB-40

• Size40
• Based on standardISO 15552
• Corrosion resistance class CRC1 - Low corrosion stress
• LABS (PWIS) conformityVDMA24364-B2-L
• Suitability for the production of Li-ion batteriesMetals with more than 5% by mass of copper are excluded from use. Exceptions are printed circuit boards, cables, electrical connectors and coils.
• Ambient temperature-40 °C ... 90 °C
• Max. load capacity1.5 kN
• Product weight155 g
• Note on materialsRoHS compliant
• Material mountingDie-cast aluminium
• Material boltGalvanised steel
• Material bearingPolymer
• Material discGalvanised steel
• Material screwsGalvanised steel
• Material lockSpring steel, galvanised
