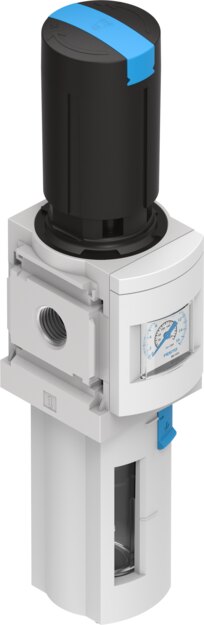

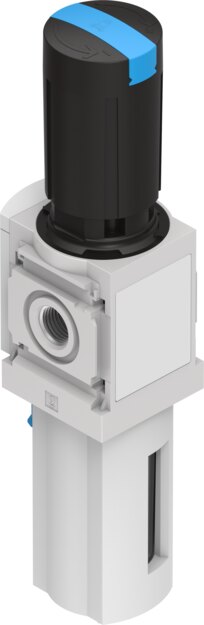

Festo, filt. regulator MS6-LFR-1/2-D7-ERM-AS, 529188

Technical Data Filter regulator MS6-LFR-1/2-D7-ERM-AS

• Size6
• SeriesMS
• Actuator lockRotary knob with detent can be closed with accessories
• Mounting positionVertical +/-5°
• Grade of filtration40 µm
• Condensate drainManual, rotating
• DesignFilter regulator with pressure gauge
• Max. condensate volume38 ml
• Controller functionOutput pressure constant With secondary exhausting
• Bowl guardPlastic bowl guard
• Degree of condensate separation>75 %
• Symbol00991589
• Pressure gauge (ANALOG) or Pressure display (DIGITAL)With pressure gauge
• Operating pressure0.08 MPa ... 2 MPa
• Operating pressure0.8 bar ... 20 bar
• Pressure regulation range0.5 bar ... 12 bar
• Max. pressure hysteresis0.025 MPa
• Max. pressure hysteresis0.25 bar
• Max. pressure hysteresis3.625 psi
• Standard nominal flow rate (standardised to DIN 1343)4500 l/min
• Operating mediumCompressed air to ISO 8573-1:2010 [-:4:-] Inert gas
• Corrosion resistance class CRC2 - Moderate corrosion stress
• LABS (PWIS) conformityVDMA24364-B1/B2-L
• Storage temperature-10 °C ... 60 °C
• Suitable for use with foodSee supplementary material information
• Air purity class at outputCompressed air to ISO 8573-1:2010 [7:4:4]
• Media temperature-10 °C ... 60 °C
• Ambient temperature-10 °C ... 60 °C
• Pore size<40 µm
• Product weight875 g
• Type of mountingEither: Front panel mounting Inline installation With accessories
• Pneumatic connection, port 1G1/2
• Pneumatic connection, port 2G1/2
• Note on materialsRoHS compliant
• Material control panelPA POM
• Material sealsNBR
• Material filterPackaging unit
• Material housingDie-cast aluminium
• Material membraneNBR
• Material bowlMakrolon®
• Material separating platePOM
