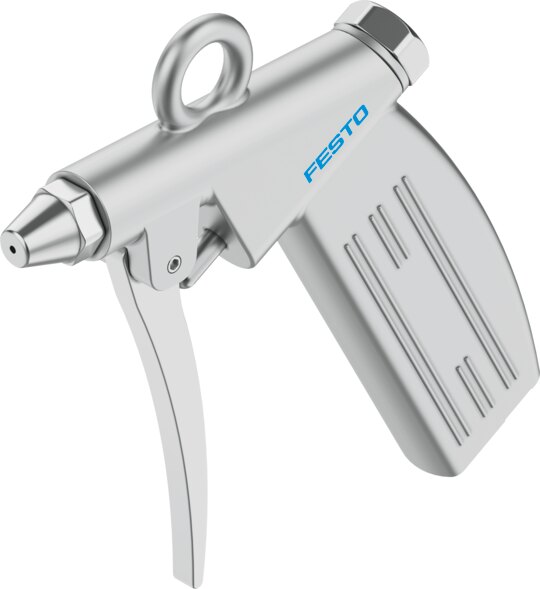

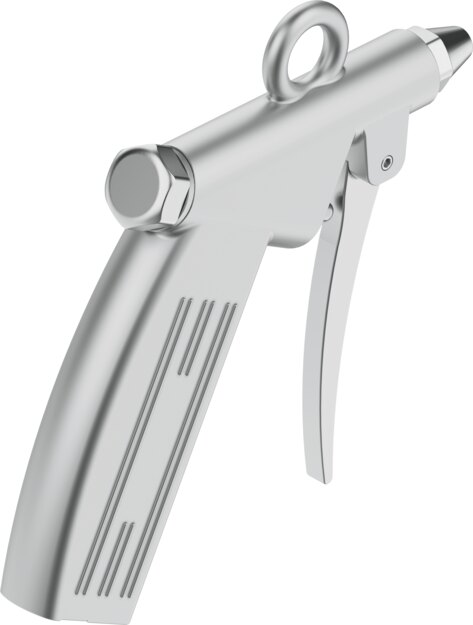

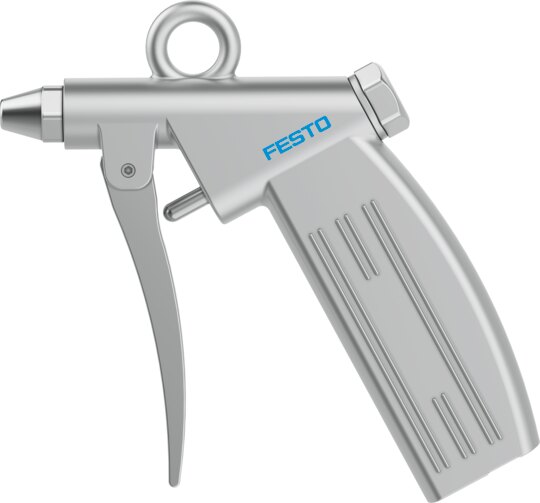

Festo, Low consumption air gun LSP-1/4-D, 35528

Technical Data Low consumption air gun LSP-1/4-D

• Exhaust-air functionMetered blowing
• Symbol00991454
• Operating pressure0 MPa ... 1 MPa
• Operating pressure0 bar ... 10 bar
• Operating pressure0 psi ... 145 psi
• Flow rate to atmosphere120 l/min
• Standard nominal flow rate (standardised to DIN 1343)120 l/min
• Nominal flow rate standardised according to ISO 8778130 l/min
• Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-]
• Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
• Corrosion resistance class CRC1 - Low corrosion stress
• LABS (PWIS) conformityVDMA24364 zone III
• Sound pressure level90 dB(A)
• Ambient temperature-10 °C ... 50 °C
• Product weight240 g
• Pneumatic connectionFemale thread G1/4
• Note on materialsRoHS compliant
• Material housingCoated die-cast aluminium
