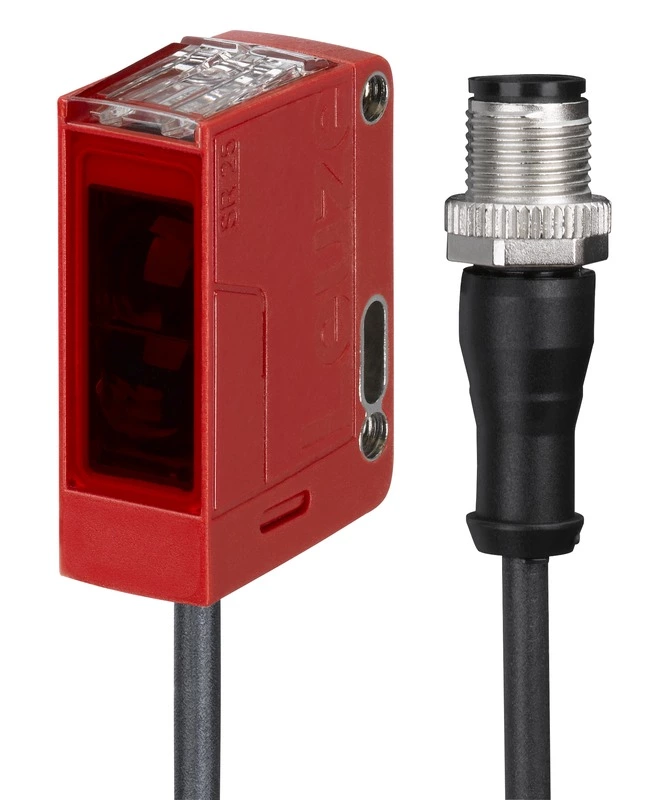

Leuze, LS25CPP/8X-200-M12, 50153710, Throughbeam photoelectric sensor transmitter
Article Number: 50153710
Throughbeam photoelectric sensor receiver
Download Datasheet (PDF)
PRICE EXCLUSIVE OF CUSTOMS AND DUTIES
Non-returnable
KES27,748.80
Customize
Share :
Product Details
Series: 25C
Operating principle: Throughbeam principle
Device type: Transmitter
Special version: Activation input
Operating range: 0 ... 25 m (guaranteed operating range)
Operating range limit: 0 ... 30 m (typical operating range)
Light source: Power PinPoint® LED, Red
Wavelength: 660 nm
Transmitted-signal shape: Pulsed
LED group: Exempt group (in acc. with EN 62471)
Light spot size [at sensor distance]: 12 mm [400 mm]
Type of light spot geometry: Round
Protective circuit: Polarity reversal protection
Short circuit protected:
Supply voltage UB: 10 ... 30 V, DC, Incl. residual ripple
Residual ripple: 0 ... 15 %, From UB
Open-circuit current: 0 ... 20 mA
Number of activation inputs: 1 Piece(s)
Type: Activation input
Readiness delay: 300 ms
Number of connections: 1 Piece(s)
Function: Signal IN
Voltage supply:
Type of connection: Cable with connector
Cable length: 200 mm
Sheathing material: PUR
Cable color: Black
Wire cross section: 0.2 mm²
Thread size: M12
Type: Male
Material: PUR
No. of pins: 4 -pin
Encoding: A-coded
Dimension (W x H x L): 15 mm x 42.7 mm x 30 mm
Housing material: Plastic
Plastic housing: ABS
Lens cover material: Plastic
Net weight: 33 g
Housing color: Red
Type of fastening: Through-hole mounting with M4 thread
Via optional mounting device:
Recommended tightening torque for M3 fastening: 0.9 N·m
Recommended tightening torque for M4 fastening: 1.4 N·m
Compatibility of materials: ECOLAB
Ambient temperature, operation: -40 ... 60 °C
Ambient temperature, storage: -40 ... 70 °C
Degree of protection: IP 67
IP 69K:
Protection class: III
Approvals: c UL US
Standards applied: IEC 60947-5-2
