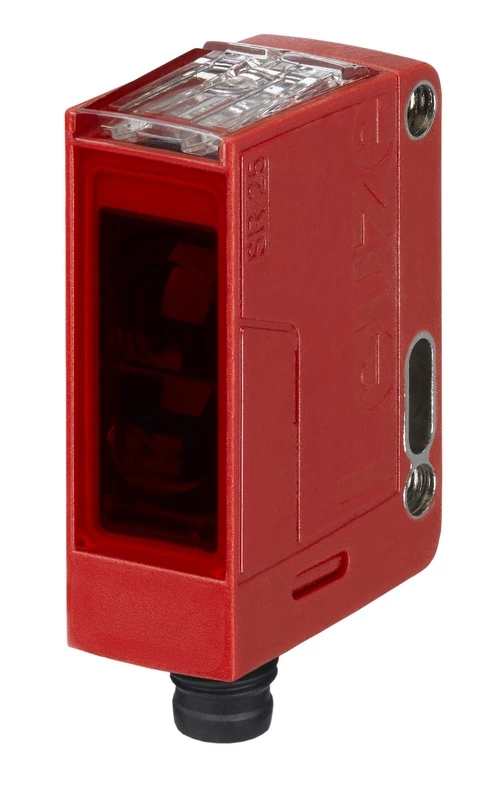

Leuze, LS25CPP/XX-M8, 50153709, Throughbeam photoelectric sensor transmitter
Article Number: 50153709
One-way light barrier transmitter
PRICE EXCLUSIVE OF CUSTOMS AND DUTIES
Non-returnable
KES24,974
Customize
Share :
Product Details
series: 25°C
Operating principle: One-way principle
Device type: Sender
Operating range: 0 ... 25 m (guaranteed range)
Border range: 0 ... 30 m (typical range)
light source: Power PinPoint® LED, red
wavelength: 660 nm
Transmission signal shape: pulsed
LED group: Free group (according to EN 62471)
Light spot size [at sensor distance]: 12 mm [400 mm]
Type of light spot geometry: around
protective circuit: Short-circuit protection, reverse polarity
protection:
Supply voltage U B: 10 ... 30 V, DC, including ripple
Residual ripple: 0 ... 15% of U B
Idle current: 0 ... 20 mA
Readiness delay: 300 ms
Number of connections: 1 pc.
function: power supply
Type of connection: Round connector
Thread size: M8
type: male
material: PURE
Number of poles: 4-pin
Coding: A-coded
Dimensions (W x H x L): 15 mm x 42.7 mm x 30 mm
Housing material: plastic
Plastic housing: ABS
Material optical cover: plastic
Net weight: 22 g
Case color: red
Type of fastening: Through-mounting with M4 thread
via optional mounting part:
Recommended tightening torque for M3 fastener: 0.9 N·m
Recommended tightening torque for M4 fasteners: 1.4 N·m
Material compatibility: ECOLAB
Ambient temperature operation: -40 ... 60 °C
Ambient temperature storage: -40 ... 70 °C
Protection class: IP 67
IP 69K:
Protection class: III
Approvals: c UL US
Valid standards: IEC 60947-5-2
