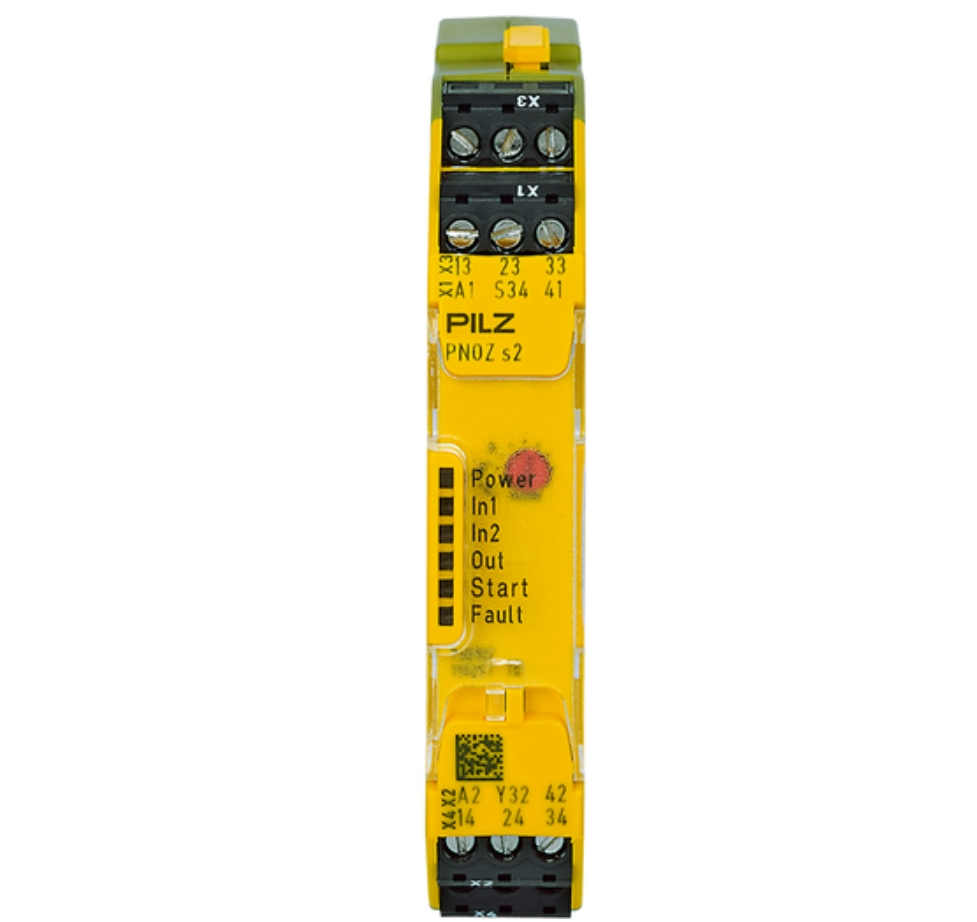

Pilz, PNOZ s2 24VDC 3 n/o 1 n/c, 750102

Approval: CCC, CE, UKCA, cULus Listed, KOSHA, EAC (Eurasian), TÜV

Supply voltage (V): 24 V

Type of supply voltage U1: DC

Power consumption DC: 2 W

Number of inputs: 1

Number of semicond. outputs:1

Utilisation cat. to EN 60947-1: DC-12

Utilisation cat. AC/DC1 stand.: EN 60947-4-1

Voltage AC1 safety cont.:240V

Max. current AC1 safety cont.:6 A

Voltage DC1 safety cont.:24 V

Max. current DC1 safety cont.:6 A

Utilisation cat. AC15/DC13sta.:EN 60947-5-1

Voltage AC15 safety cont.:230 V

Max. current AC15 safety cont.:5 A

Voltage DC13 safety cont.:24 V

Safety contacts: AC at UL:240 VAC G.U. (same polarity)

Relay contact material:AgCuNi

Addit. contact details relay: + 0.2 µm Au

Climatic suitability to ...:EN 60068-2-78

Ambient temperature: -10 °C

Humidity rating:  93 % r. h. at 40 °C

Condensation permitted:  Not permitted

EMC to standard ...:EN 60947-5-1, EN 61000-6-2, EN 61000-6-4, EN 61326-3-1

Vibration to standard ...:  EN 60068-2-6

Clearance & creepage dist. to:  EN 60947-1

Overvoltage category:  III

Pollution degree clear.&creep.:  2

Protection type, housing:  IP40

Mounting position:  any

Housing material lower section:PC

Housing material front plate:PC

Housing material upper part:PC

Connection terminal:Screw terminal

Terminal style:plug-in

Flex. cond. c/s AWG info: 24 - 12 AWG

Height dimension:98 mm

Width dimension:17.5 mm

Depth dimension:120 mm

Net weight:175 g

Gross weight:185 g
