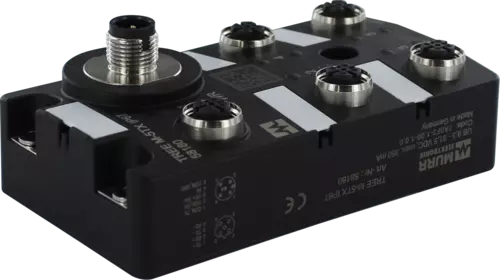

Murr TREE PROFINET managed Switch 5x10/100BT IP67 plastic M12, 58184
Customize
Share :
Electrical data | Supply
Operating voltage DC min. | 9,5 V |
Operating voltage DC max. | 31,5 V |
Current consumption min. | 97,5 mA |
Current consumption max. | 162,5 mA |
Industrial Communication
Data transmission rate max. | 100 Mbit/s |
Industrial communication | Bus data
Supported protocol | Profinet |
Industrial communication | Ethernet functionality
LLDP frames | forwarding |
Switch type | managed |
duplex | Full duplex |
Auto-negotiation | Yes |
Auto-crossover | Yes |
Ring topology | STP, RSTP, MRP |
Industrial communication | Profinet
Conformance Class | B |
addressing | DCP |
Netload Class | I |
Specification | V2.3 |
MRP client | Yes |
Fast-Start-Up (FSU) | No |
Shared device/input | No |
Industrial communication | IIoT functions
Webserver | HTTP, HTTPS |
Remote maintenance | Open VPN client |
Switch Management
VLAN managed (IEEE 802.1Q) | No |
RSTP (IEEE 802.1D-2004, IEC 62439-1) | Default on |
Simple Network Management Protocol (SNMP) | v1 + v2c + v3 (default active) |
Time synchronization | NTP client, Real-time clock |
Addressing | SSH-Befehlszeile, DCP, BOOTP/DHCP client |
Diagnostics
Alarm contact | No |
Diagnostic | No voltage |
LED display | Ethernet connection/data traffic |
RMON | Yes |
Port mirroring | 1:1 |
Syslog | Yes |
SNMP traps | Yes |
Device protection | Electrical
Degree of protection (EN IEC 60529) | IP67 |
Mechanical data | Material data
housing | Plastic |
Color housing | black |
Mechanical data | Mounting data
Height | 105 mm |
Width | 60 mm |
Depth | 40 mm |
Suitable for mounting type | 3 hole screw mounting |
Environmental characteristics | Climatic
Operating temperature min. | 0 °C |
Operating temperature max. | 60 °C |
Ambient temperature (storage, transport) | -40 °C … 85 °C |
General Information
- Manufacturer:Murr
- Category:Electricals & Automation
