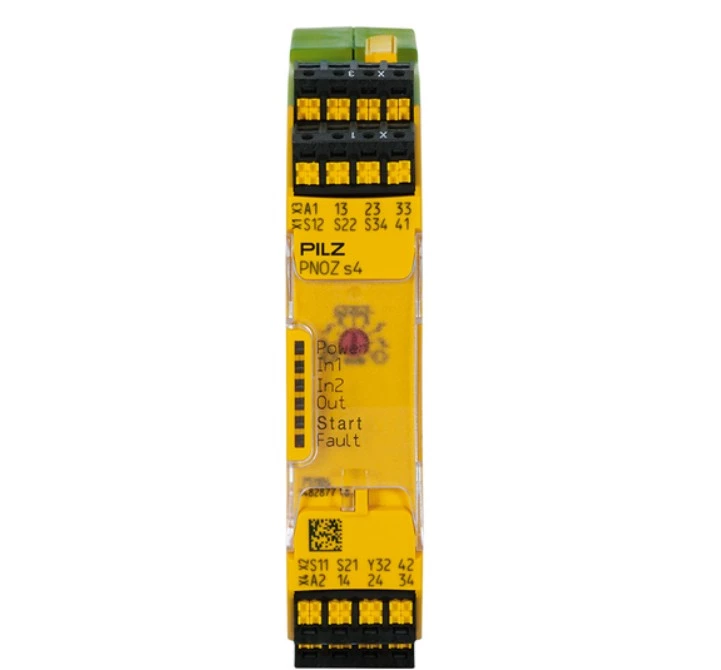

Pilz PNOZ s4 C 24VDC 3 n/o 1 n/c, 751104

Approval: CCC, CE, UKCA, cULus Listed, KOSHA, EAC (Eurasian), TÜV

Supply voltage (V): 24 V
Type of supply voltage U1: DC
Power consumption DC: 2.5 W

Number of inputs: 2

Number of semicond. outputs:1
Utilisation cat. to EN 60947-1: DC-12

Utilisation cat. AC/DC1 stand.: EN 60947-4-1
Voltage AC1 safety cont.:240V
Max. current AC1 safety cont.:6 A
Voltage DC1 safety cont.:24 V
Max. current DC1 safety cont.:6 A
Utilisation cat. AC15/DC13sta.:EN 60947-5-1
Voltage AC15 safety cont.:230 V
Max. current AC15 safety cont.:5 A
Voltage DC13 safety cont.:24 V
Safety contacts: AC at UL:240 VAC G.U. (same polarity)
Relay contact material:AgCuNi
Addit. contact details relay: + 0.2 µm Au

Climatic suitability to ...:EN 60068-2-78
Ambient temperature: -10 °C
Humidity rating:  93 % r. h. at 40 °C
Condensation permitted:  Not permitted
EMC to standard ...:EN 60947-5-1, EN 61000-6-2, EN 61000-6-4, EN 61326-3-1
Vibration to standard ...:  EN 60068-2-6
Clearance & creepage dist. to:  EN 60947-1
Overvoltage category:  III / II
Pollution degree clear.& creep: 2
Protection type, housing:  IP40

Mounting position: any
Housing material lower section:PC
Housing material front plate:PC
Housing material upper part:PC
Connection terminal: Spring-loaded terminal
Terminal style:plug-in
Height dimension:100 mm
Width dimension:22.5 mm
Depth dimension:120 mm
Net weight:185 g
Gross weight:195 g
