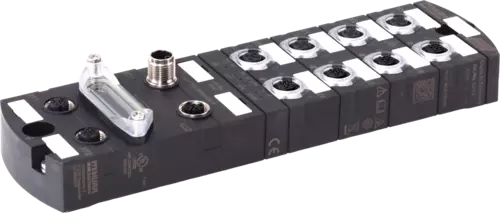

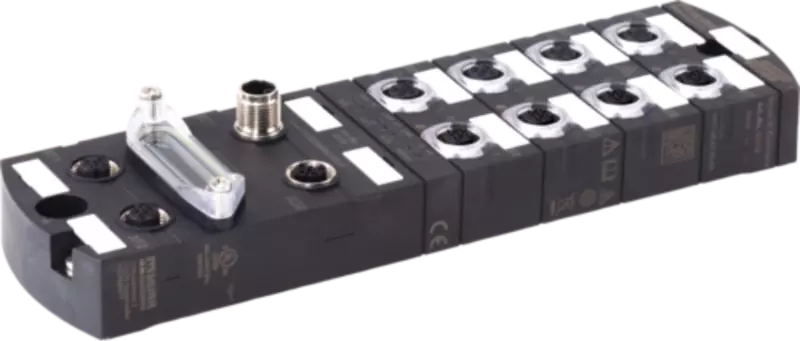

Murr Impact67 PN DIO16 M12L 5P, 55170

Norm operating voltage

IEC/EN 61131-2

Operating voltage US DC

24 V

Total current US max.

16 A

Operating voltage UA DC

24 V

Total current UA max.

16 A

Sensor current US per input max.

0,2 A

Short-circuit protected

Yes

Overload resistant

Yes

Type input

for 3-wire sensors or mechanical switches, PNP

Output current per pin max.

1,6 A

Total current outputs max.

9 A

Overload resistant

Yes

Short-circuit protected

Yes

Lamp load

10 W

Supported protocol

Profinet

Conformance Class

C

addressing

DCP

Netload Class

III

Specification

V2.3

IRT-network communication

Yes

Fast-Start-Up (FSU)

Yes

Fast start up time max.

0,5 s

Shared device/input

Yes

Number of active connections (IO controller) max.

2

Actuator warning

per channel via LED and BUS

Cable break

per port

Diagnostic

No voltage, Under voltage

Diagnostic via BUS

per module and channel

Diagnostic via LED

per module and channel

LED display

Ethernet connection/data traffic

Degree of protection (EN IEC 60529)

IP67

Height

37 mm

Width

63 mm

Depth

225 mm

Suitable for mounting type

2-hole screw mounting

Operating temperature min.

-25 °C

Operating temperature max.

55 °C

Ambient temperature (storage, transport)

-25 °C … 70 °C
