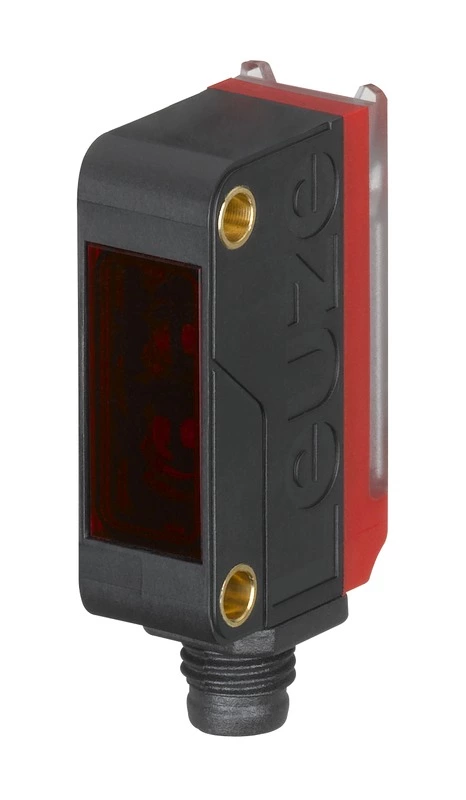

Leuze,LS5B/X-M8.3, 50153518, Throughbeam photoelectric sensor transmitter
Article Number: 50153518
One-way light barrier transmitter
PRICE EXCLUSIVE OF CUSTOMS AND DUTIES
Non-returnable
KES10,558
Customize
Share :
Product Details
series: 5B
Operating principle: One-way principle
Device type: Sender
Operating range: 0 ... 10 m (guaranteed range)
Border range: 0 ... 15 m (typical range)
light source: LED, red
wavelength: 645 nm
Transmission signal shape: pulsed
LED group: Free group (according to EN 62471)
protective circuit: Short-circuit protection, reverse polarity
protection:
Supply voltage U B: 10 ... 30 V, DC, including ripple
Residual ripple: 0 ... 15% of U B
Idle current: 0 ... 20 mA
Readiness delay: 300 ms
Number of connections: 1 pc.
function: power supply
Type of connection: Round connector
Thread size: M8
type: male
material: plastic
Number of poles: 3-pole
Dimensions (W x H x L): 11 mm x 32.4 mm x 20 mm
Housing material: plastic
Plastic housing: PC-ABS
Material optical cover: plastic
Net weight: 18 g
Case color: red
black:
Type of fastening: Two M3 threaded sleeves
via optional mounting part:
Recommended tightening torque for M3 fastener: 0.9 N·m
Material compatibility: ECOLAB
Type of display: LED
Number of LEDs: 2 pcs.
Ambient temperature operation: -40 ... 60 °C
Ambient temperature storage: -40 ... 70 °C
Protection class: IP 67
Protection class: III
Approvals: c UL US
Valid standards: IEC 60947-5-2
