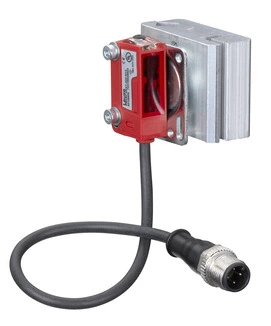

Leuze, SET PRK3C.A3/4T-200-M12+BTU200MVKT, 50155517, Polarized retro-reflective photoelectric sensor set
Article Number: 50155517
Polarized retro-reflective photoelectric sensor set
PRICE EXCLUSIVE OF CUSTOMS AND DUTIES
Non-returnable
KES47,376.00
Customize
Share :
Product Details
Series: 3C
Operating principle: Reflection principle
Pre-mounted on: Mounting system
Special version: Article set
Autocollimation:
Teach input:
Operating range: 0 ... 4 m (guaranteed operating range), With reflector TK(S) 100x100
Operating range limit: 0 ... 5 m (typical operating range), With reflector TK(S) 100x100
Light source: LED, Red
Wavelength: 635 nm
Transmitted-signal shape: Pulsed
LED group: Exempt group (in acc. with EN 62471)
Protective circuit: Polarity reversal protection
Short circuit protected:
Supply voltage UB: 10 ... 30 V, DC, Incl. residual ripple
Residual ripple: 0 ... 15 %, From UB
Open-circuit current: 0 ... 15 mA
Number of teach inputs: 1 Piece(s)
Type: Teach input
Function: Keyboard lockout
Light/dark switching:
Sensitivity adjustment:
Number of digital switching outputs: 1 Piece(s)
Type: Digital switching output
Switching element: Transistor, PNP
Switching principle: Light switching
Switching frequency: 1,500 Hz
Response time: 0.33 ms
Readiness delay: 300 ms
Response jitter: 110 µs
Number of connections: 1 Piece(s)
Function: Signal IN
Signal OUT:
Voltage supply:
Type of connection: Cable with connector
Cable length: 200 mm
Sheathing material: PUR
Cable color: Black
Wire cross section: 0.2 mm²
Thread size: M12
Type: Male
Material: PUR
No. of pins: 4 -pin
Encoding: A-coded
Dimension (W x H x L): 11.4 mm x 34.2 mm x 18.3 mm
Housing material: Plastic
Plastic housing: PC-ABS
Lens cover material: Plastic / PMMA
Net weight: 20 g
Housing color: Red
Type of fastening: Through-hole mounting with M4 thread
Via optional mounting device:
Recommended tightening torque for M3 fastening: 0.9 N·m
Recommended tightening torque for M4 fastening: 1.4 N·m
Compatibility of materials: ECOLAB
Type of display: LED
Number of LEDs: 2 Piece(s)
Operational controls: Teach button
Function of the operational control: Sensitivity adjustment
Ambient temperature, operation: -40 ... 60 °C
Ambient temperature, storage: -40 ... 70 °C
Degree of protection: IP 67
IP 69K:
Protection class: III
Approvals: c UL US
Standards applied: IEC 60947-5-2
Specifications
General Information
- Manufacturer:Leuze
- Category:Electricals & Automation
