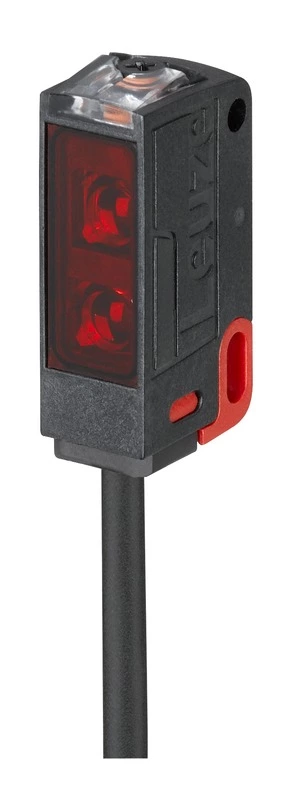

Leuze, HT23-60F/4, 50155349, Diffuse sensor with background suppression
Article Number: 50155349
Diffuse sensor with background suppression
PRICE EXCLUSIVE OF CUSTOMS AND DUTIES
Non-returnable
KES24,139.20
Customize
Share :
Product Details
Series: 23
Operating principle: Diffuse reflection principle with background suppression
Special version: Permanently set range
Black-white error: < 15% up to 200 mm
Operating range: Guaranteed operating range
Operating range, white 90%: 0.005 ... 0.06 m
Operating range limit, white 90%: 0.005 ... 0.06 m
Operating range limit: Typical operating range
Permanently set operating range: 0.06 m
Beam path: Focused
Light source: LED, Red
Wavelength: 645 nm
Transmitted-signal shape: Pulsed
LED group: Exempt group (in acc. with EN 62471)
Type of light spot geometry: Round
Focus: Fixed
Focal distance: 200 mm
Protective circuit: Polarity reversal protection
Short circuit protected:
Supply voltage UB: 10 ... 30 V, DC, Incl. residual ripple
Residual ripple: 0 ... 15 %, From UB
Open-circuit current: 0 ... 15 mA
Number of digital switching outputs: 1 Piece(s)
Type: Digital switching output
Switching element: Transistor, PNP
Switching principle: Light switching
Switching frequency: 1,000 Hz
Response time: 0.5 ms
Readiness delay: 300 ms
Number of connections: 1 Piece(s)
Function: Signal OUT
Voltage supply:
Type of connection: Cable
Cable length: 2,000 mm
Sheathing material: PUR
Cable color: Black
Number of conductors: 3 -wire
Wire cross section: 0.14 mm²
Dimension (W x H x L): 11.4 mm x 34.2 mm x 18.3 mm
Housing material: Plastic
Plastic housing: PC-ABS
Lens cover material: Plastic / PMMA
Net weight: 50 g
Housing color: Black
Red:
Type of fastening: Via optional mounting device
Recommended tightening torque for M3 fastening: 0.9 N·m
Type of display: LED
Number of LEDs: 2 Piece(s)
Operational controls: Multiturn potentiometer
Function of the operational control: Range adjustment
Ambient temperature, operation: -40 ... 60 °C
Ambient temperature, storage: -40 ... 70 °C
Degree of protection: IP 67
Protection class: III
Approvals: c UL US
Standards applied: IEC 60947-5-2
