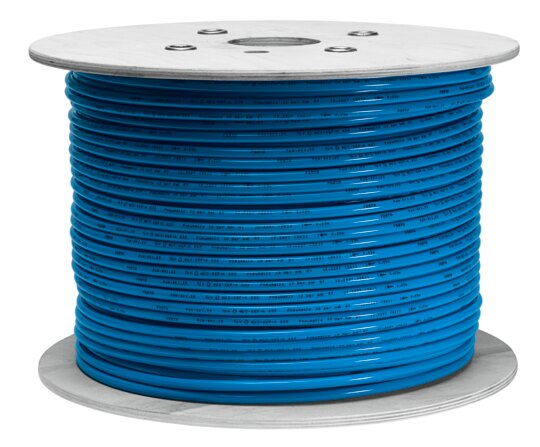

Festo, Plastic tubing PEN-12X1,75-BL-200, 551448

Technical Data Plastic tubing PEN-12X1,75-BL-200

• Outside diameter12 mm
• Flow-relevant bending radius58 mm
• Inside diameter8.4 mm
• Min. bending radius33 mm
• Tubing characteristicsSuitable for energy chains
• Temperature-dependent operating pressure-0.095 MPa ... 1 MPa
• Temperature-dependent operating pressure-0.95 bar ... 10 bar
• Temperature-dependent operating pressure-13.775 psi ... 145 psi
• Note on operating pressureWater: max. 0.6 MPa at 0 - 50 °C
• ApprovalGerman Technical Control Board (TÜV)
• Certificate issuing authorityB 013277 0527 00
• Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free)
• LABS (PWIS) conformityVDMA24364-B2-L
• Cleanroom suitability, measured according to ISO 14644-14Element installed statically, no meaningful evaluation possible according to ISO 14644-1
• Ambient temperature-30 °C ... 60 °C
• Product weight according to length0.05423 kg/m
• Pneumatic connectionFor push-in connector outside diameter of 12 mm
• ColourBlue
• Shore hardnessD 52 +/-3
• Note on materialsRoHS compliant
